Modulators & Demodulators
The Axiro Zero-Distortion™ and Glitch-Free™ pin-compatible IQ demodulator products offer the world’s lowest power consumption and the world’s lowest IM3 distortion while at the same time resulting in less than 0.5dB overshoot ringing during MSB gain transitions. Similarly, the Axiro Zero-Distortion™ IQ modulator products provide very high IP3 and IP2 performance resulting in superb ACLR performance compared to competitive devices.
CONTACT SALESProduct Selector
Part Number (4)

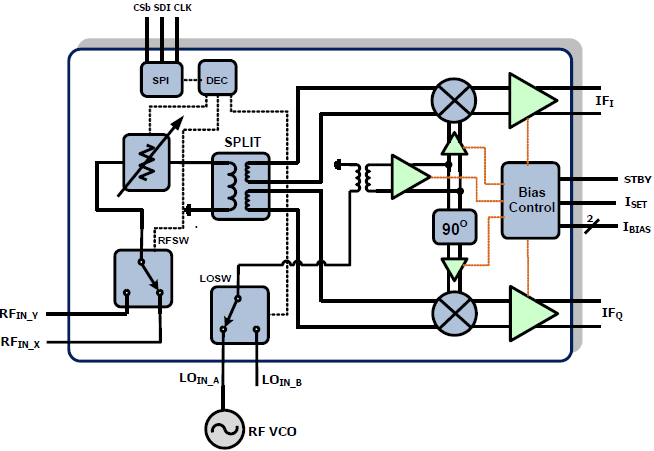

F1300
DPD Demodulator - 550MHz to 1150MHz
Description
DPD for PA Linearization
RF Frequency Min (GHz)
0.55
RF Frequency Max (GHz)
1.15
LO Frequency (GHz)
0.5 – 1.3
IF Frequency (GHz)
0.02 – 0.350
Supply Voltage (V)
5
Gain (dB)
11.8
Max Attn. (dB)
9.7
OIP3 (dBm)
43
Package (mm)
5 x 5, 20–Pin QFN
Current (mA)
190

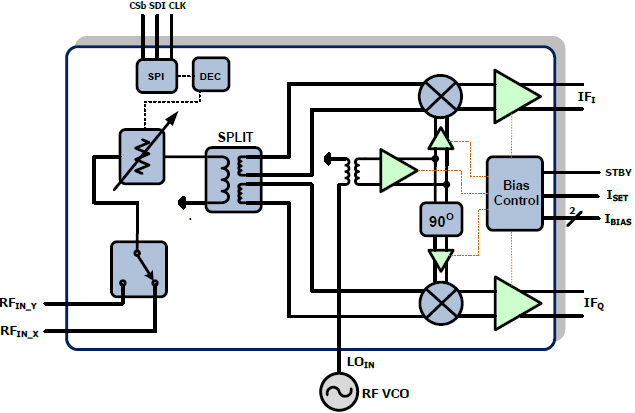

F1350
DPD Demodulator - 1300MHz to 2900MHz
Description
DPD for PA Linearization
RF Frequency Min (GHz)
1.3
RF Frequency Max (GHz)
2.90
LO Frequency (GHz)
1.40 – 2.90
IF Frequency (GHz)
0.02 – 0.500
Supply Voltage (V)
5
Gain (dB)
11.7
Max Attn. (dB)
10.2
OIP3 (dBm)
42
Package (mm)
5 x 5, 20–Pin QFN
Current (mA)
200

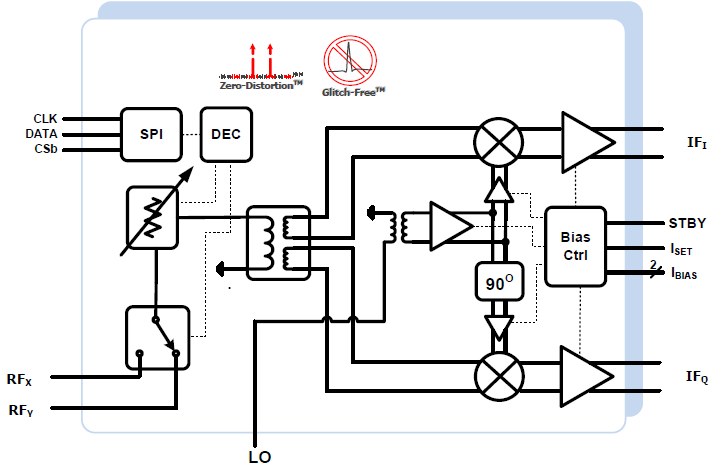

F1358
High-Frequency Band DPD Demodulator with Integrated DSA and RF Switch
Description
DPD for PA Linearization
RF Frequency Min (GHz)
3.2
RF Frequency Max (GHz)
4
LO Frequency (GHz)
3.1 – 3.8
IF Frequency (GHz)
0.02 – 0.5
Supply Voltage (V)
3.3
Gain (dB)
11.1
Max Attn. (dB)
7
OIP3 (dBm)
35
Package (mm)
4 x 4, 24–Pin QFN
Current (mA)
134

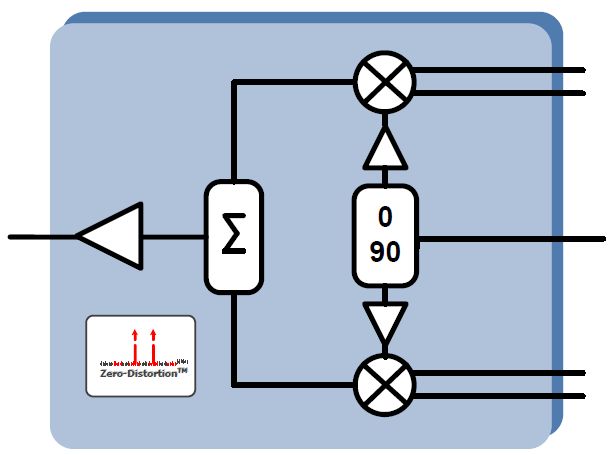

F1653
Broadband ZIF/CIF I/Q Modulator for High Order LTE MIMO Systems
Description
ZIF / CIF
RF Frequency Min (GHz)
0.6
RF Frequency Max (GHz)
2.9
LO Frequency (GHz)
0.6 – 2.9
IF Frequency (GHz)
0 – 0.6
Supply Voltage (V)
3.3
Gain (dB)
3
Max Attn. (dB)
15
OIP3 (dBm)
36
Package (mm)
4 x 4, 24-Pin QFN
Current (mA)
178
