Product Details
- Wide flat performance IF BW
- Wide RF and LO BWs (~ 0.5GHz)
- Ideal for multi-carrier systems
- Drives ADC directly
- Ultra linear +40dBm OIP3
- Low noise figure
- Excellent ACLR performance
- 100? output impedance
- Fully integrated DPD demodulator

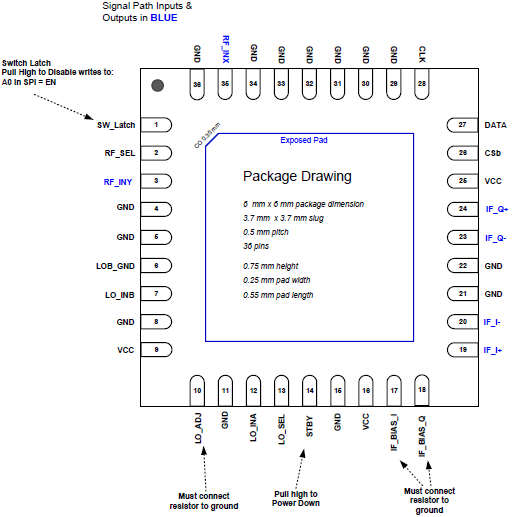

- 6 × 6 mm, 36-pin VFQFPN package
- Standby mode with fast recovery
- ICC: 262mA
The F1325 is a Digital Pre-Distortion Demodulator for PA linearization typically used in base stations to significantly improve the ACLR and/or power consumption of the full TX system in base stations transmitter applications.
Design & Development (Boards and Kit)

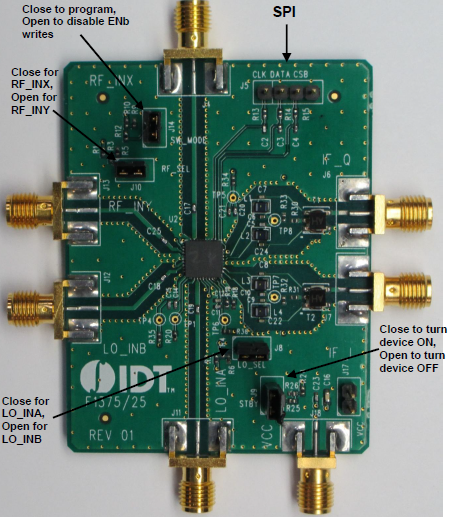

Evaluation Board for the F1325 Demodulator
The F1325EVBI is a fully populated evaluation board that allows the customer to easily evaluate the F1325 Demodulator.
