Product Details
- Wide flat performance IF BW
- Wide RF and LO BWs (~ 1.6GHz)
- Ideal for multi-carrier systems
- Drives ADC directly
- Ultra linear +40dBm OIP3
- Low noise figure
- Excellent ACLR performance
- 100? output impedance
- Fully integrated DPD demodulator
- 6 x 6 mm, 36-pin VFQFPN package
- Standby mode with fast recovery
- ICC: 270mA
The F1375 is a Digital Pre-Distortion Demodulator for PA linearization typically used in base stations to significantly improve the ACLR and/or power consumption of the full TX system in base stations transmitter applications.
Product Documents
Type
Name
Date
Actions
Datasheet
2025-08-25
F1375 Datasheet
pdf |
761.64 KB
End Of Life Notice
2025-08-25
PLC# : 230010 End-of-Life (EOL) process on select part numbers
pdf |
1.11 MB
Boards and Kits

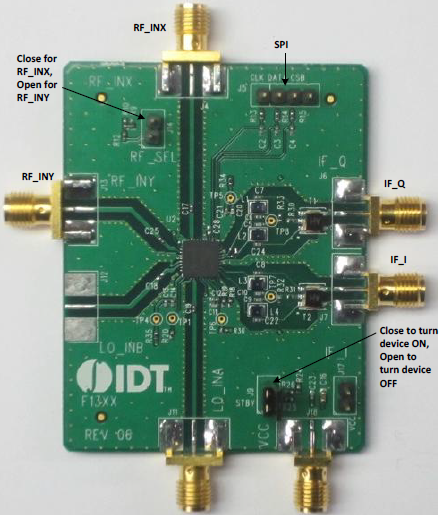

Evaluation Board for the F1375 Demodulator
The F1375EVBI is a fully populated evaluation board that allows the customer to easily evaluate the F1375 Demodulator.
