Product Details
.png)
.png)
- F0448EVB (Evaluation Board)
- SMA connectors for RF input and RF output
- Power supply connected through SMA connector
- Standby mode can be easily set via the on-board header pins
- The attenuation is settable with serial port interface (SPI)
- F0448EVS (Evaluation Solution)
- Includes product evaluation board described above
- Includes Digital Control Board and all necessary cables
- Interfaces with the Digital Control Software

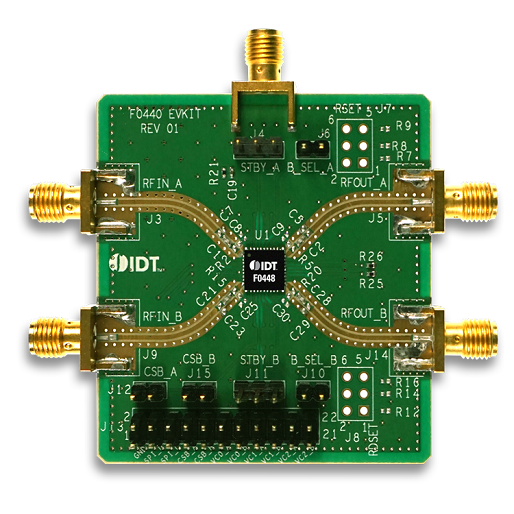

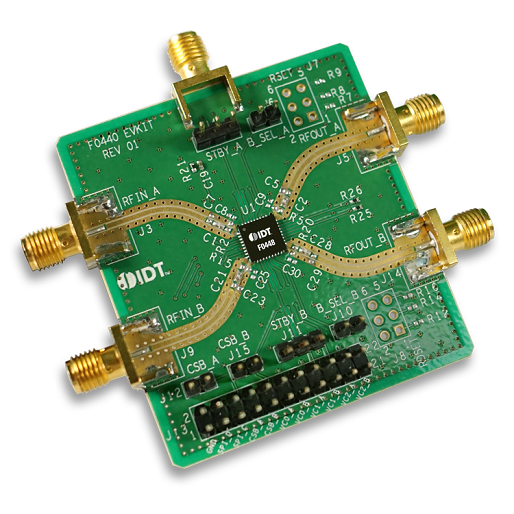

The F0448EVB is a fully populated evaluation board which allows the customer to easily evaluate the F0448 Dual Matched Broadband RF DVGA. The attenuation setting may be set using the F0448's serial control input. Header pins on the evaluation board allow setting standby mode without off-board connections to the control inputs.
The F0448EVS is a complete hardware and software solution that allows customers to digitally control the F0448EVB with the USB output on a computer. The kit includes the F0448EVB board, as well as a USB Digital Control Board and interface cables.
Product Documents
Type
Name
Date
Actions
Datasheet
2025-08-24
F0448 Datasheet
pdf |
4.77 MB
Guide
2025-08-24
RF Products Evaluation System (EVS) Digital Control Software
pdf |
2.83 MB
Application Note
2025-08-24
AN-1013 F0448 GUI Automation
pdf |
10.39 MB
