Product Details
- F1456EVBK (Evaluation Board)
- SMA connectors for RF input and RF output
- Power supply connected either through SMA connector or header pins
- Attenuator selectable via serial port interface (SPI) using header pins
- F1456EVSK (Evaluation Solution)
- Includes F1456EVBK Evaluation Board described above
- Includes Digital Control Board and all necessary cables
- Interfaces with the Digital Control Software – can be downloaded from this page

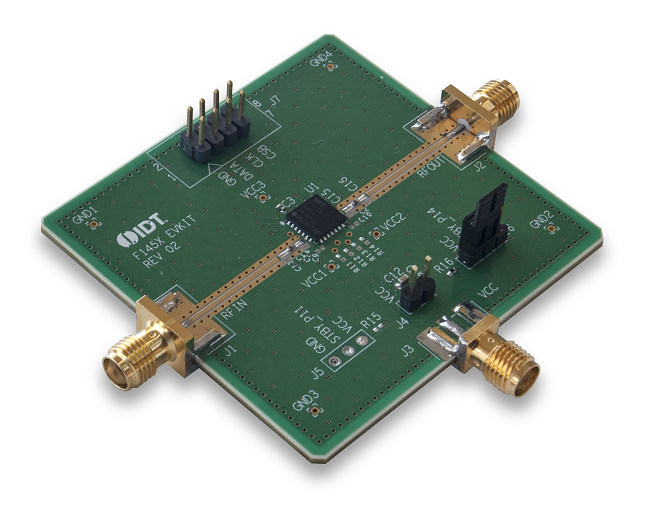

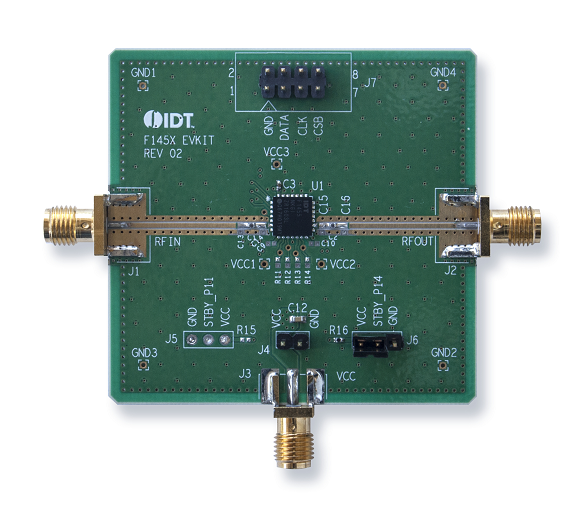

The F1456EVBK is a fully populated evaluation board that allows the customer to easily evaluate the F1456 TX RF Digital Variable Gain Amplifier. Attenuation is set using SPI.
The F1456EVSK is a complete hardware and software solution that allows customers to digitally control the F1456EVBK with the USB output on a computer. The kit includes the F1456EVBK board, as well as a USB Digital Control Board, and interface cables. The software, guides , and instructional videos are available for download/viewing on this page.
Product Documents
Type
Name
Date
Actions
Datasheet
2025-08-24
F1456 Datasheet
pdf |
8.75 MB
