Product Details
- RF connectors for RF1 and RF2, and the "Thru" calibration ports for easy calibration prior to making RF measurements.
- The F2970EVkit has a number of control features available
- Refer to the EVkit Application Circuit , EVkit Picture and Applications information in the datasheet to properly connect to and control the evaluation board features.
- All bias and logic controls are applied to the appropriate pins of the pin header located on the evaluation board

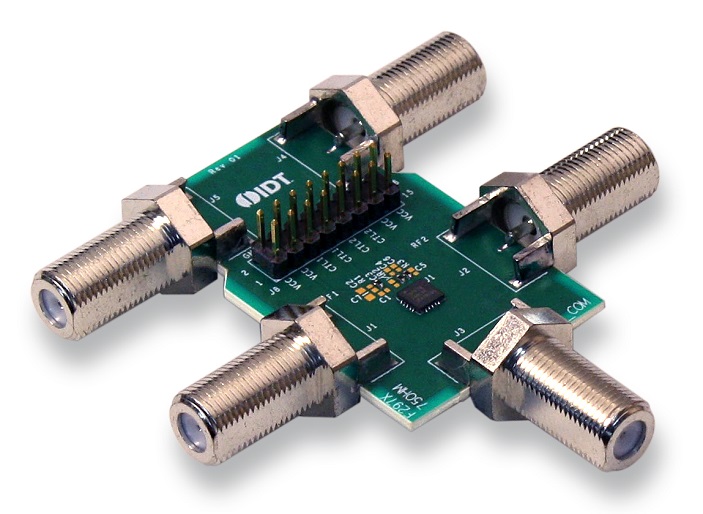

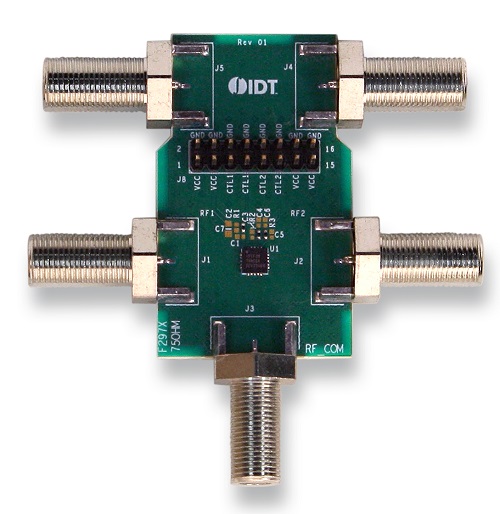

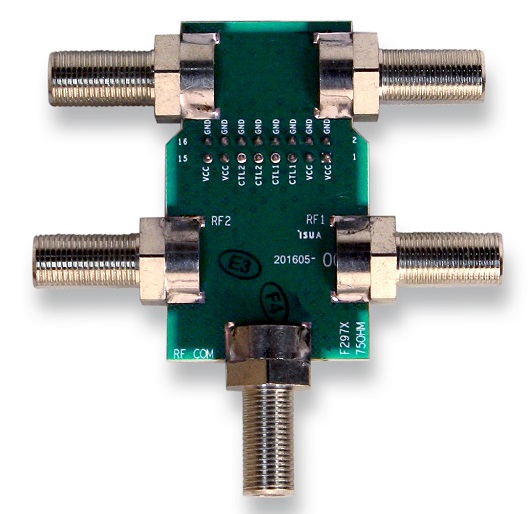

The F2970EVBI is a fully populated, enabling easy RF evaluation of the product.
“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by applying the correct control logic voltage to the control pins as outlined in the datasheet. DC power, ground and the control voltages are applied to the pin header.
