F2976EVBI
Evaluation Board for F2976 High Linearity Broadband SP2T RF Switch
Product Details

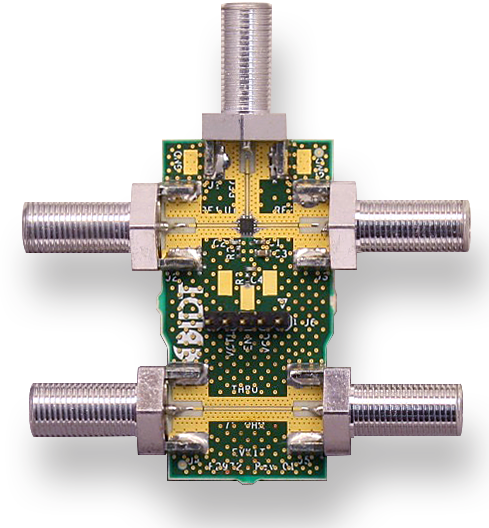

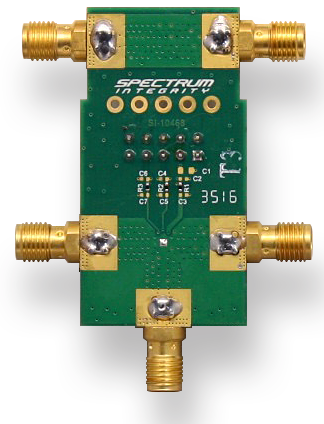

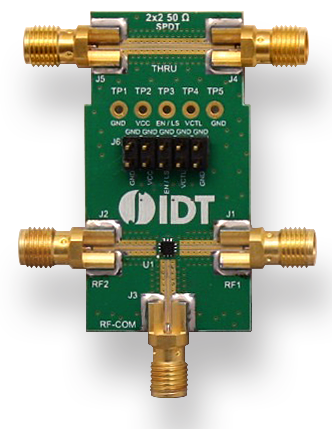

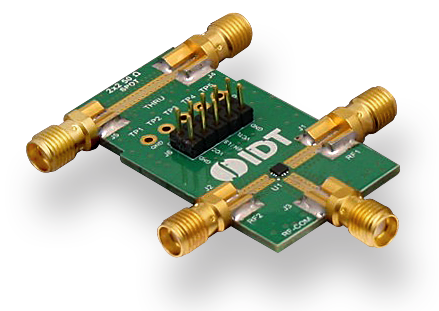

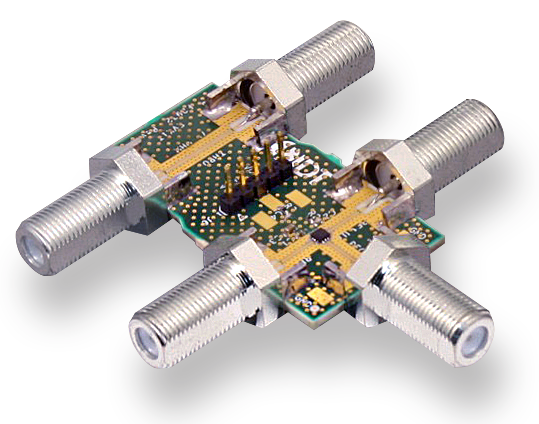

The F2976EVBI is a fully populated evaluation board, enabling easy RF evaluation of the product. It is available in 50? or 75? terminating impedance.
“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by applying the correct control logic voltage to the control pins as outlined in the datasheet. DC power, ground and the control voltages are applied to the pin header.
