Product Details
Included Components:

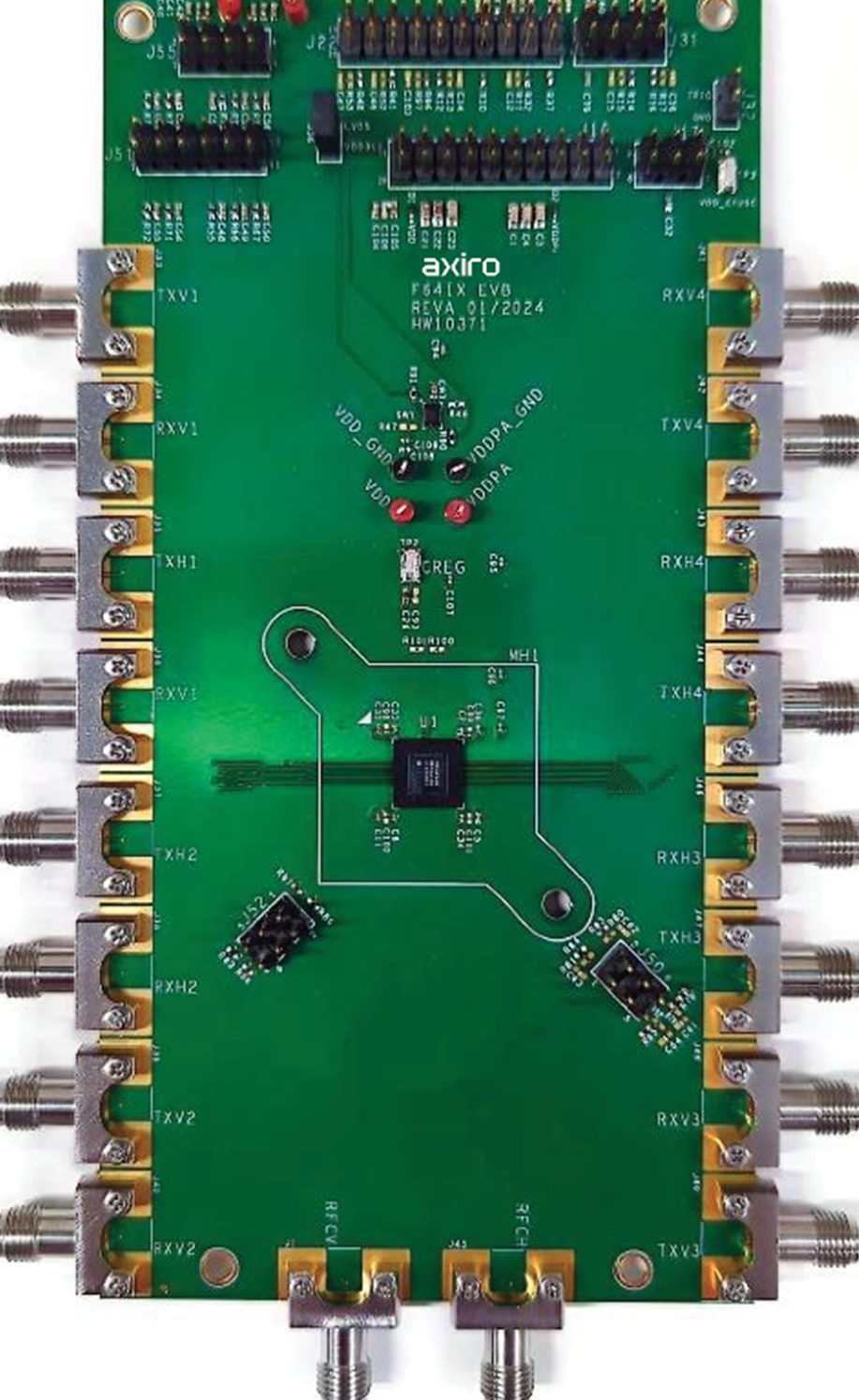

F6413/F6415 Evaluation Board.
FT2232HL Digital Interface Board.
USB-to-Micro USB Cable.
20-Pin Supply Cable.
8-Pin DAC Supply Cable.
10-Wire Jumper.
The F6415 Evaluation Board (EVB) is designed to help users evaluate the F6415 beamformer devices. This document provides the information necessary to use the F6415 EVB and a brief overview of the associated control software Graphical User Interface (GUI). Axiro recommends that you review the corresponding device datasheets and use them as a reference to supplement the information provided in this document.
Product Documents
Type
Name
Date
Actions
User Manual
2026-01-16
F641x-EVB-Manual
pdf |
1.36 MB
Design & Development
Type
Name
Date
Actions
De-Embed (AFR) Files
2026-01-16
F641x
zip |
5.83 MB
GUI Files
2026-01-16
F641x_Evaluation_Software_R0.0.1.6
zip |
3.88 MB
PCB Files
2026-01-16
F641x
zip |
16.77 MB
Schematic Files
2026-01-16
F641x
pdf |
861.88 KB
Part Number (1)
RTKRF64150-000
View Details
