Product Details

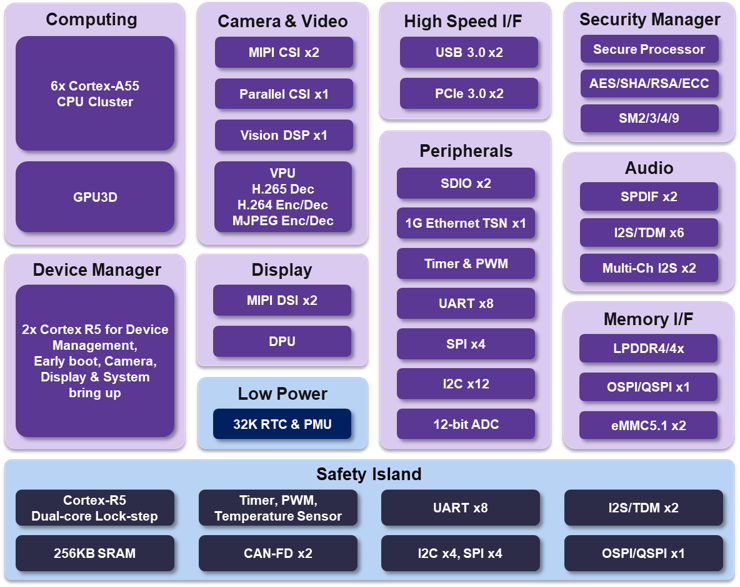

- 6x Cortex-A55 CPUs up to 2.0GHz for responsive application performance
- IMG PowerVR 9XM GPU for advanced graphics and digital HMI rendering
- Dedicated AI accelerator with TensorFlow and Caffe support
- Three-domain architecture for application processing, safety, and low-power control
- Secure processor based on Cortex-R5 in DCLS mode
- Multi-purpose processor based on Cortex-R5 in DCLS mode
- Safety CPU based on Cortex-R5F running at 800MHz in DCLS mode
- 2x 4-lane MIPI-DSI display interfaces
- 4x LVDS display interfaces for multi-display cockpit layouts
- 2x 4-lane MIPI-CSI interfaces supporting 4 virtual channels
- 1x 8-bit parallel CSI interface for added camera flexibility
- H.264 video encode/decode support
- H.265 / VP8 / VP9 video decode support
- 32-bit DRAM interface up to 4267MT/s
- LPDDR4 / LPDDR4x / DDR4 memory support with optional inline ECC
- 2x USB 3.0 interfaces
- 2x PCIe 3.0 dual-role RC/EP interfaces
- 2x eMMC 5.1, 2x SD 3.0/SDIO, and 1x QuadSPI/OctalSPI storage interfaces
- 1x Gigabit Ethernet TSN and 2x CAN-FD for automotive networking and control
- RTC, system power/reset control, and 2048-bit secure storage register for low-power always-on system management
- Automotive AEC-Q100 Grade 2 (-40 ~ 105°C), HBM ESD Level 2, CDM ESD Level C1

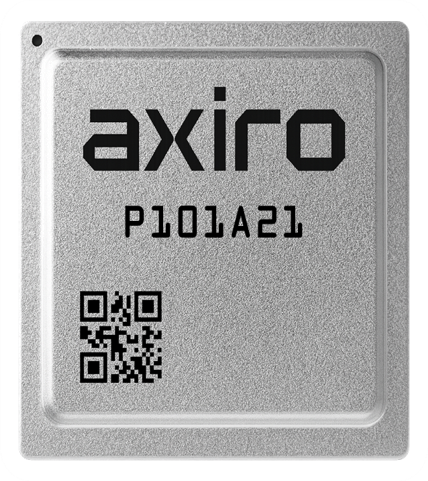

AX100 is a high-performance automotive applications processor built to help OEMs and Tier 1s deliver next-generation digital cockpit platforms with 45 K DMIPS of CPU compute, 140 GFLOPS of GPU performance and 0.4 TOPS of NPU. By combining application processing, advanced display and camera support, rich multimedia, broad automotive connectivity, and an integrated safety domain, AX100 helps simplify system design while providing a scalable foundation for modern cockpit architectures.
- eCockpit
- Virtual Cluster
- Infotainment
Product Documents
Type
Name
Date
Actions
2026-07-30
AX100-Datasheet.pdf
Part Number (1)
P101A21
