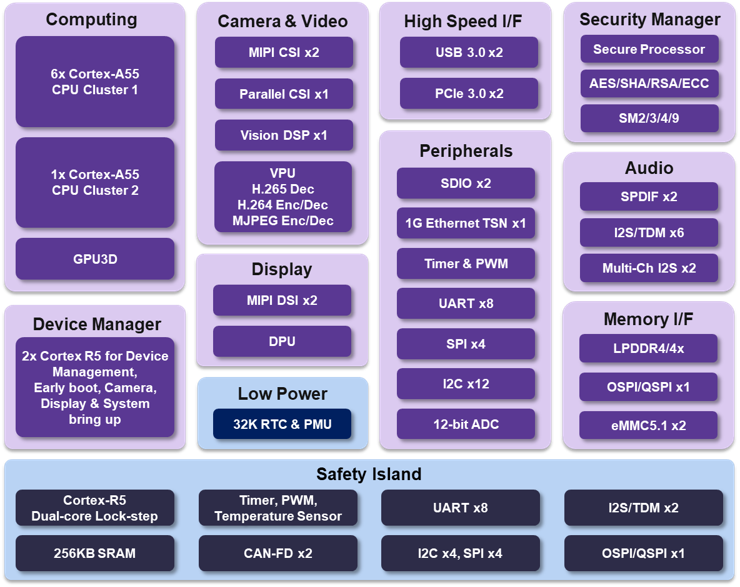

Product Details
- 6x Cortex-A55 CPUs operating at up to 2.0GHz in the primary cluster.
- 1x additional Cortex-A55 CPU operating at 1.4GHz in a secondary cluster.
- 32KB/32KB L1 instruction/data cache per A55 core with 128KB L2 cache per core and 1MB L3 cache for the primary cluster.
- IMG PowerVR 9XM GPU for advanced graphics and digital HMI rendering.
- Dedicated AI accelerator with TensorFlow and Caffe framework support.
- Dedicated secure processor based on Cortex-R5 in DCLS mode.
- Dedicated multi-purpose processor based on Cortex-R5 in DCLS mode.
- Safety CPU based on Cortex-R5F running at 800MHz in DCLS mode.
- 2x 4-lane MIPI-DSI interfaces and 4x LVDS display interfaces.
- 2x 4-lane MIPI-CSI interfaces with support for 4 virtual channels.
- 1x 8-bit parallel CSI interface for additional image sensor flexibility.
- H.264 video encode/decode support.
- H.265 / VP8 / VP9 video decode support.
- 32-bit DRAM interface up to 4267MT/s.
- LPDDR4 / LPDDR4x / DDR4 memory support with optional inline ECC.
- 2x USB 3.0 and 2x PCIe 3.0 dual-role RC/EP interfaces.
- 2x eMMC 5.1, 2x SD 3.0/SDIO, and 1x QuadSPI/OctalSPI storage interfaces.
- 1x Gigabit Ethernet TSN plus 2x CAN-FD in the safety domain for automotive networking and control.
- RTC, power/reset control, 2048-bit secure storage register
- ADC, audio interfaces, and extensive peripherals including SPI, UART, I2C, GPIO, PWM, watchdog, timer, and temperature sensor
- Automotive AEC-Q100 Grade 2 (-40 ~ 105°C), HBM ESD Level 2, CDM ESD Level C1
AX110 is a high-performance automotive applications processor built to help OEMs and Tier 1s deliver next-generation eCockpit platforms with 50 K DMIPS of CPU compute, 140 GFLOPS of GPU performance and 0.4 TOPS of NPU. By combining strong application performance, rich graphics capability, AI acceleration, flexible connectivity, and integrated safety support and integrated multi-domain architecture helps simplify system design, reduce platform complexity, and provide a scalable foundation for modern cockpit systems that demand both user experience and safety-oriented reliability.
- eCockpit
- Virtual Cluster
- Infotainment

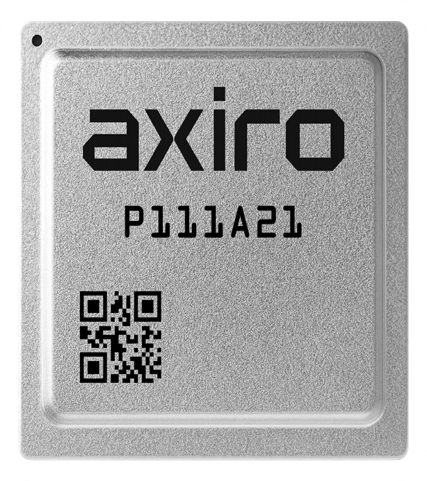

Part Number (1)
P111A21
