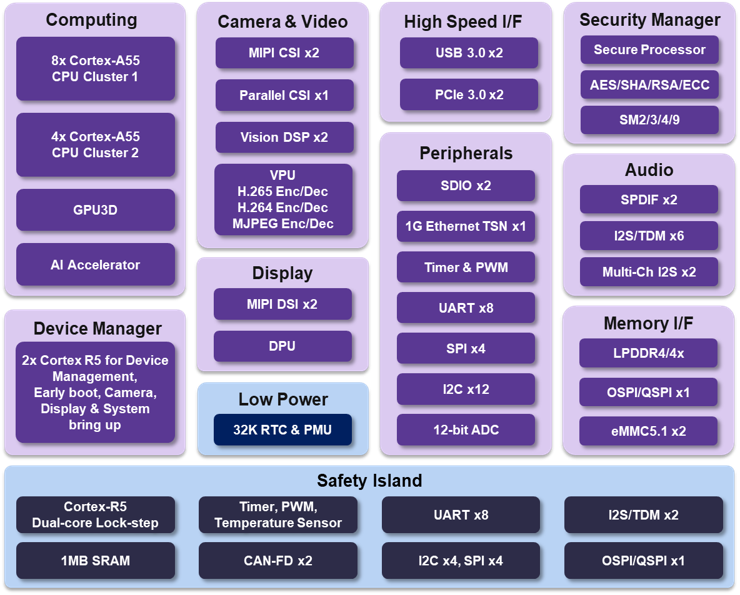

Product Details
- 8x Cortex-A55 CPUs operating at up to 2.3GHz in the primary application cluster.
- 4x Cortex-A55 CPUs operating at up to 2.0GHz in the additional CPU cluster.
- 32KB/32KB L1 cache and 128KB L2 cache per CPU core, with 1MB L3 cache on CPU1 and 512KB L3 cache on CPU2.
- Inline ECC support on both CPU clusters for added reliability.
- Dedicated secure processor based on Cortex-R5 in DCLS mode with ECC on cache and TCM.
- Dedicated multi-purpose processor based on Cortex-R5 in DCLS mode with ECC on cache and TCM.
- Safety CPU based on Cortex-R5F running at 800MHz in DCLS mode.
- Dedicated Neural Network Processing Unit (NPU) for efficient AI processing.
- Integrated Image Signal Processor (ISP) for efficient image processing capability.
- IMG PowerVR 9XM GPU for advanced graphics and HMI rendering.
- 2x 4-lane MIPI-DSI interfaces and 4x LVDS display interfaces.
- 2x 4-lane MIPI-CSI interfaces with support for 4 virtual channels.
- 1x 8-bit parallel CSI interface for additional camera integration flexibility.
- H.264 video encode/decode and H.265 video encode/decode support.
- 8MB internal system RAM in the applications processing domain.
- LPDDR4 / LPDDR4x DRAM support with optional inline ECC.
- 2x USB 3.0 and 2x PCIe 3.0 dual-role RC/EP interfaces.
- 2x eMMC 5.1, 2x SD 3.0/SDIO, and 1x QuadSPI/OctalSPI storage interfaces.
- 1x Gigabit Ethernet TSN, 2x CAN-FD, 4x SPI, 8x UART, 12x I2C, GPIO, PWM, watchdog, timer, and temperature sensor support.
- Real-time clock, system power/reset control, 32KHz oscillator, and 2048-bit secure storage register for low-power always-on system management.
- Automotive AEC-Q100 Grade 2 (-40 ~ 105°C), HBM ESD Level 2, CDM ESD Level C1
AX150 is a high-performance automotive applications processor built to help OEMs and Tier 1s deliver next-generation digital cockpit platforms with 100 K DMIPS of CPU compute, 230 GFLOPS of GPU performance and 8 TOPS of NPU. By combining high-performance heterogeneous processing, rich graphics, neural network acceleration, integrated imaging, and broad automotive connectivity, AX150 helps system designers a scalable foundation for advanced cockpit platforms that need strong application performance, vision-enabled capability, rich multimedia, and safety-oriented reliability.
- eCockpit
- Virtual Cluster
- Infotainment

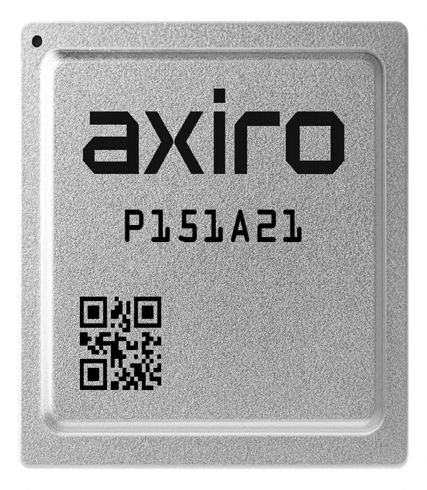

Part Number (1)
P151A21
