Product Details
- 24.25GHz to 27.5GHz operation
- 8 radiation channels, beam-per-polarization
- Flexible output power and high efficiency with Dynamic Array Power (DAP™)
- ArraySense™ technology for real-time monitoring
- High-speed SPI control with RapidBeam™ technology

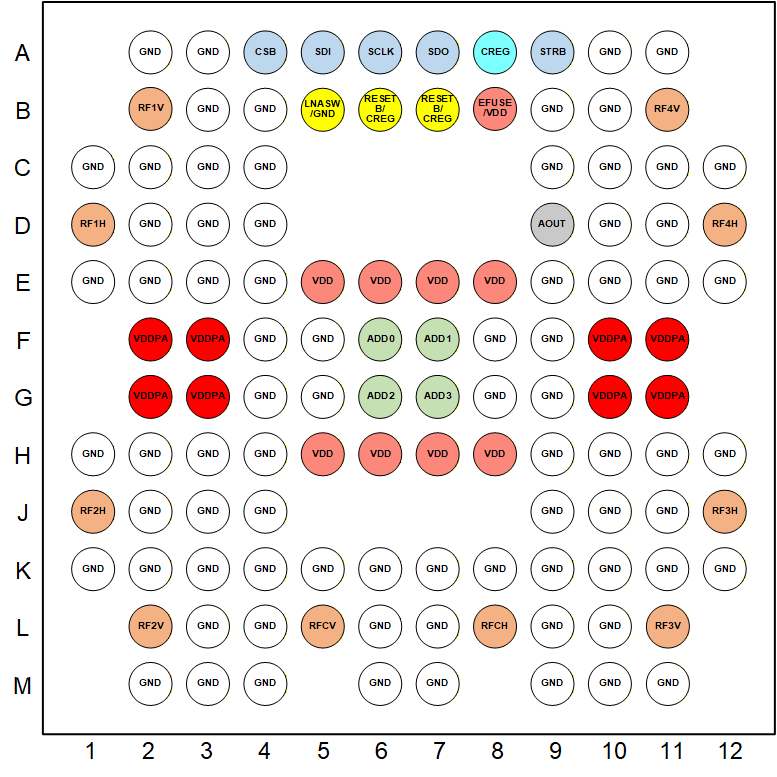

- 5.1mm × 5.1mm, 118-BGA package with exposed-die
- -40°C to +95°C ambient operating temperature range

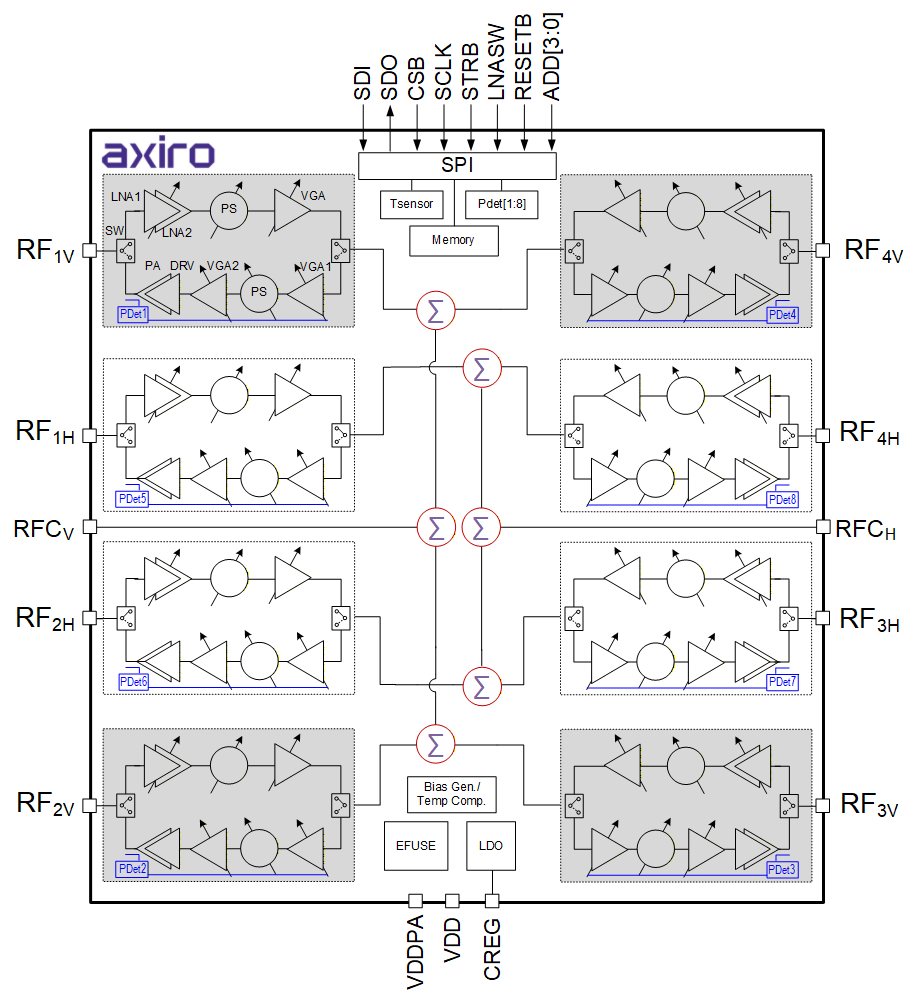

The F5268 is an eight-channel TRX silicon IC designed for dual polarization 5G phased-array applications at n258 band. This device provides more than 15.5dBm linear output power* in silicon for wide-band 5G-NR waveforms.
*Power level with < 3% EVM using 400MHz 5G-NR CP-OFDM waveform
Design & Development (Boards and Kit)

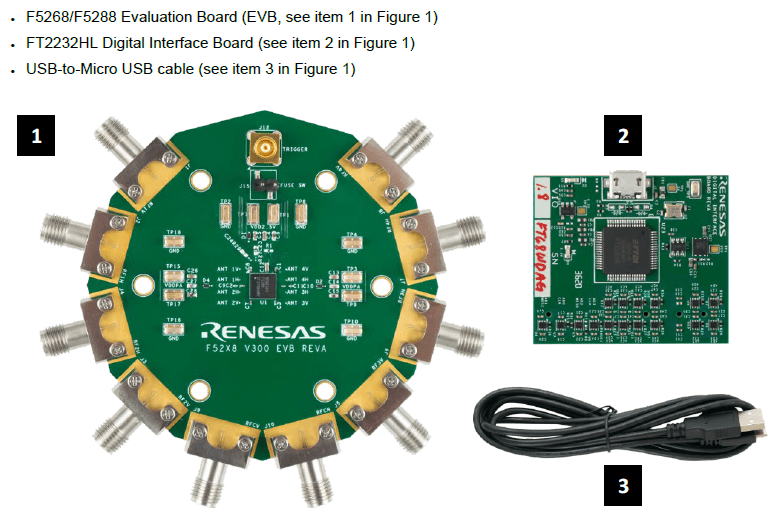

Evaluation System for the F5268 8-Channel Dual-Polarization TRX Beamformer IC
The F5268 Evaluation System is designed to help users evaluate the Beamformer device. When connected to a PC running the software, the device can be configured and programmed to control its Phased Array channels with best-in-class performance.
Part Number (3)
RA81F5268STGBX#BC0
RA81F5268STGBX#KC0
RTKA81F5268ST000RU
