Product Details
- 26.5GHz to 29.5GHz operation
- 8 radiation channels, beam-per-polarization
- Flexible output power and high efficiency with Dynamic Array Power (DAP™)
- ArraySense™ technology for real-time monitoring
- High-speed SPI control with RapidBeam™ technology

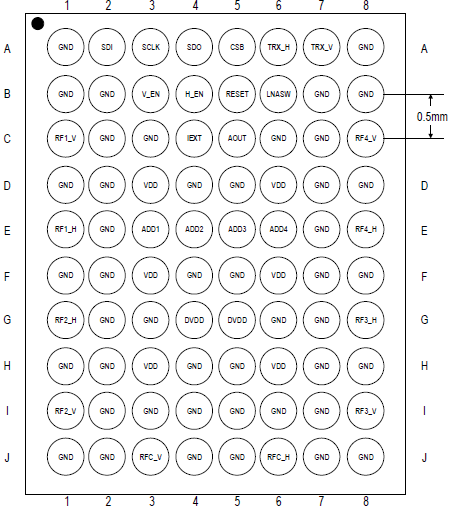

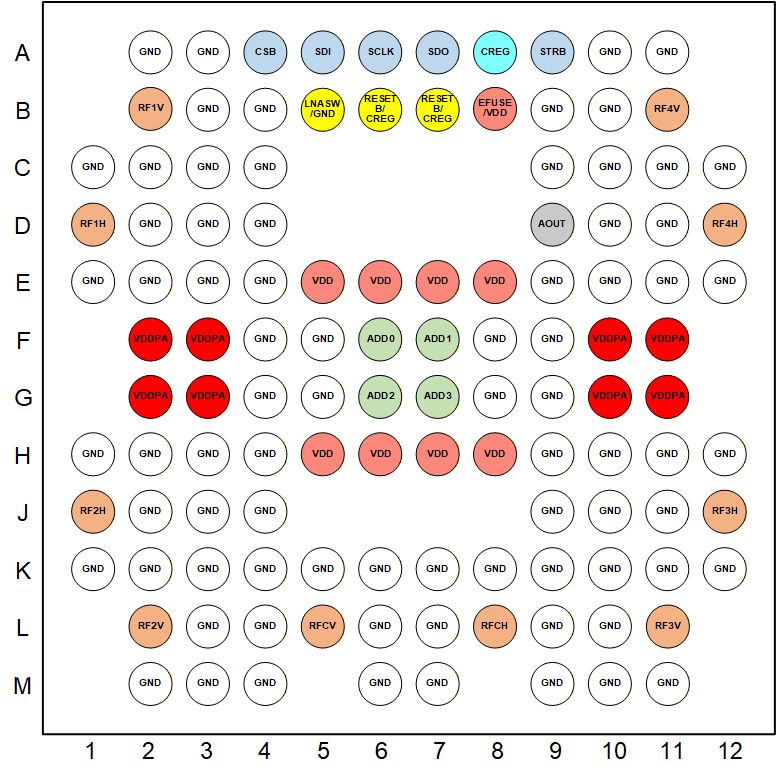

- 5.1mm × 5.1mm, 118-BGA package with exposed-die
- -40 °C to +95 °C ambient operating temperature range

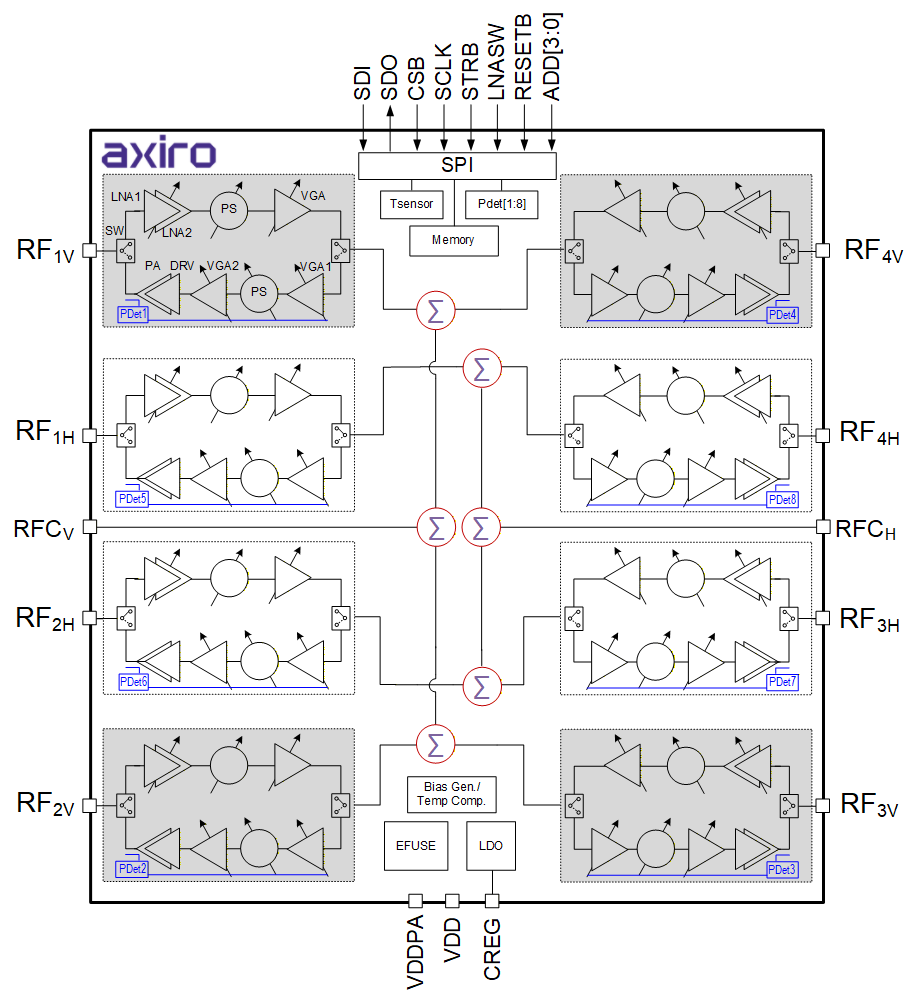

The F5288 is an eight-channel transceiver (TRX) silicon IC designed for dual polarization 5G phased-array applications at n257/n261 band. This device provides more than 15.5dBm linear output power* in silicon for wideband 5G-NR waveforms.
*Power level with < 3% EVM using 400MHz 5G-NR CP-OFDM waveform
Product Documents
Type
Name
Date
Actions
2025-08-25
F5288 Short Form Datasheet
2025-08-25
F5288 Datasheet
2026-01-12
F52x8 EVS Manual
Design & Development
Type
Name
Date
Actions
2026-01-12
F5288 S-Parameters
2026-02-02
F5288 IBIS Model
Boards and Kits
Evaluation System for the F5288 8-Channel Dual-Polarization TRX Beamformer IC
The F5268 Evaluation System is designed to help users evaluate the Beamformer device. When connected to a PC running the software, the device can be configured and programmed to control its Phased Array channels with best-in-class performance.
Part Number (3)
RA81F5288STGBX#BC0
RTKA81F5288ST000RU
RA81F5288STGBX#KC0
