Product Details
- RF range: 24.25GHz to 29.5GHz
- IF range: 2GHz to 7GHz
- Two integrated LO frequency doublers
- Operating temperature (TA) range: -40°C to +105°C
- 4.0 × 4.0 mm, 49-BGA package
The F5728 is a highly integrated mmWave up/down-converter used in 5G beamforming applications targeting n257/n258/n261 bands. The device utilizes real-IF heterodyne architecture to convert 2GHz to 7GHz IF signals to the 5G NR FR-2 bands spanning the 24.25 GHz to 29.5 GHz spectrum. Low-side local oscillator (LO) injection is used for both bands. External LO feed requirements are eased by the device’s two sequential on-chip LO frequency doublers which yield net multiplication factors of either 2x or 4x. All RF, IF, and LO ports employ single-ended 50? impedances for ease of integration into the signal path.
The F5728 is controlled through an advanced high-speed SPI protocol and packaged in 4.0 × 4.0 mm, 49-BGA package. It is rated for operation over the -40°C to 105°C temperature range.
Product Documents
Type
Name
Date
Actions
2025-08-25
F5728H6-Datasheet
Boards and Kits
Evaluation System for the F5728 mmWave Up/Down-Converter

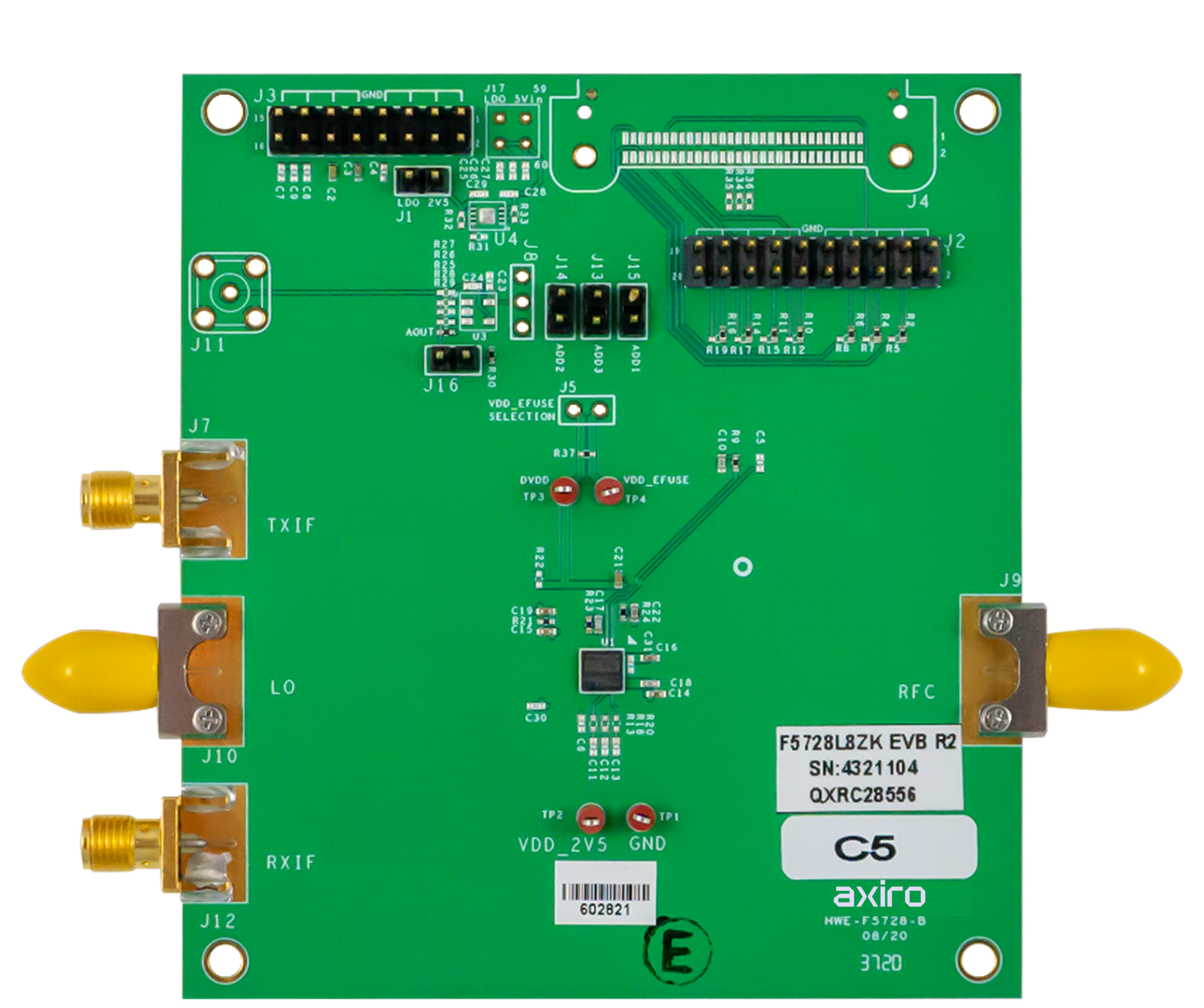

The F5728 Evaluation Board (EVB) is designed to help you evaluate the F5728 upconverter/downconverter device. This document provides the information necessary to use the F5728 EVB and provides a brief overview of the associated control software Graphical User Interface (GUI). Axiro recommends that you review the F5728 datasheet and use it as a reference to supplement the information provided in this document.
Part Number (3)
RTKA81F5728H6000RU
RA81F5728H6GBX#KC0
RA81F5728H6GBX#BC0
