Product Details
- 12GHz to 18GHz operation
- Independent gain and phase control
- Supply voltages:
- Core (VDD): 2.4V - 2.6V
- PA (VDDPA):
- 1.1V - 1.3V (Nominal)
- 1.9V - 2.1V (High power)
- Internal LDO: 1.8V for digital
- Fast and flexible digital interface
- Integrated DACs for external FEM gate bias
- On-chip ADC for internal/external voltage sensing
- Compact size for planar integration on ?/2 grid:
- 8.00 × 8.00 × 0.88 mm, 180-FCCSP (FCBGA)
- Ambient operating temperature: -40°C to +95°C

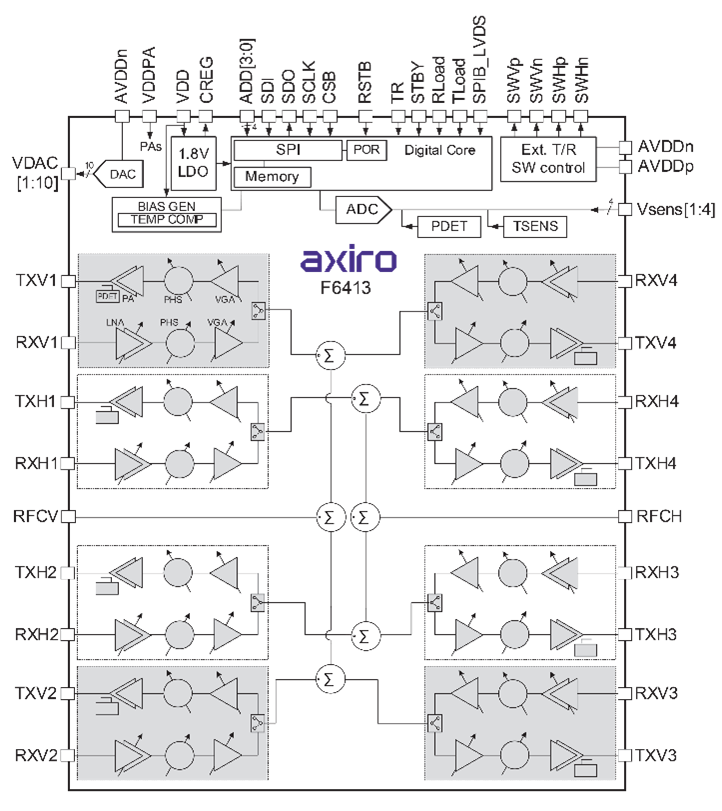

The F6413 is an 8-channel, dual-polarized, transmit/receive active beamforming IC (TRX BFIC) designed for use in X/Ku-band planar phased array antennas. The BFIC has eight antenna ports with independent phase/amplitude control channels and two common ports, allowing for independent combining and distribution of vertical and horizontal signal paths. All inputs and outputs are single-ended and 50? matched for ease of integration onto phased array antenna panels.
The F6413 has integrated high-resolution voltage DACs designed to provide T/R-synchronized gate bias control signals to external GaAs/GaN front-end modules (FEMs). It also contains an ADC and dedicated voltage sensing pins for voltage sensing from off-chip power detectors.
- FMCW and pulse-doppler radar
- X/Ku-band SATCOM and Point-to-Point terminals
- Electronically Steered Phased Array Antennas (ESAs)
Product Documents
Type
Name
Date
Actions
2026-01-06
F6413 Datasheet
2026-01-12
F641x EVB User Manual
Design & Development
Type
Name
Date
Actions
2026-01-12
F6413 IBIS Model
Boards and Kits
F6413 Evaluation Board (EVB)
The F6413 Evaluation Board (EVB) is designed to help users evaluate the F6413 beamformer devices. This document provides the information necessary to use the F6413 EVB and a brief overview of the associated control software Graphical User Interface (GUI). Axiro recommends that you review the corresponding device datasheets and use them as a reference to supplement the information provided in this document.
Part Number (3)
RRF64130-B00
RRF64130-K00
RTKRF64130-000
