Product Details
- 650MHz to 1GHz operating range
- 18dB typical Gain
- Less than 0.6dB NF
- 50? single-ended input/output impedances
- +5V power supply
- ICC = 60mA per channel
- Independent channel standby modes for power savings
- 1.8V Logic standby control
- Operating temperature (TEP) range: -40 °C to +105 °C

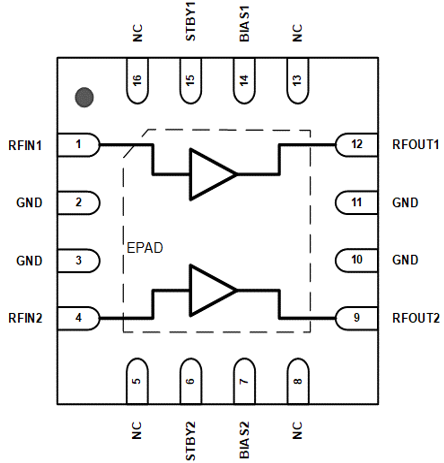

- 4mm x 4mm, 16-VFQFPN package
The F0109 is a dual path 650MHz to 1GHz high gain / ultra-low noise amplifier used in receiver applications.
The F0109 LNA is operated as a balanced amplifier where the inputs and outputs are combined via external 90° couplers and provides 18dB of gain. The device uses a single 5V supply and 120mA typical of total ICC.
The F0109 is packaged in a 4mm x 4mm, 16-pin VFQFPN with 50? single-ended RF input and output impedances for ease of integration into the signal path.
- 3G, 4G, 5G wireless infrastructure
- Public safety infrastructure
- General purpose RF
Product Documents
Type
Name
Date
Actions
2025-08-25
RF Amplifiers with Zero-Distortion Technology
2025-08-25
F0109 Datasheet
2025-08-25
Macro BTS Product Overview
2025-08-25
PCN# : 230007 Add alternate assembly locations on select DFN and VFQFPN packages
Part Number (3)
F0109NBTI
F0109NBTI8

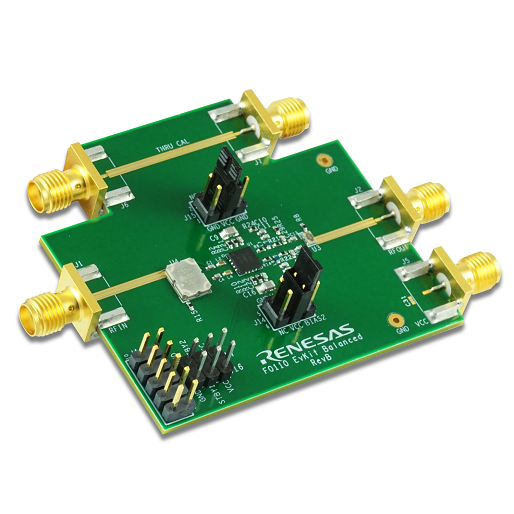

F0109EVB
