Product Details
- Broadband 600MHz to 3000MHz
- 13.1dB typical gain at 2000MHz
- 5.1dBNF at 2000MHz
- +41.8dBm OIP3 at 2000MHz
- +21.5dBm output P1dB at 2000MHz
- Single 5V supply voltage
- ICC = 120mA
- Up to +105 °C TCASE operating temperature
- 50? differential input impedance
- 50? single-ended output impedance
- Positive gain slope for board loss compensation

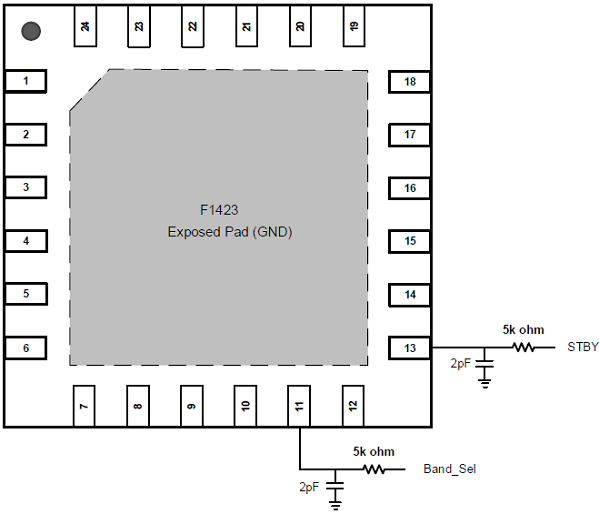

- Standby mode for power savings

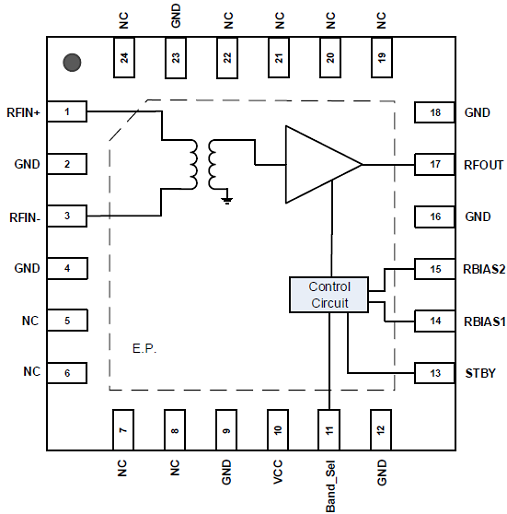

The F1423 RF amplifier provides 13.1dB gain with +41.8dBm OIP3 and 5.1dB noise figure at 2000MHz. This device uses a single 5V supply and 120mA of ICC. The F1423 is packaged in a 4mm x 4mm, 24-VFQFPN package with 50? differential RF input and 50? single-ended RF output impedances for ease of integration into the signal path.
- Multi-mode, Multi-carrier Transmitters
- GSM850/900 Base Stations
- PCS1900 Base Stations
- DCS1800 Base Stations
- WiMAX and LTE Base Stations
- UMTS/WCDMA 3G Base Stations
- PHS/PAS Base Stations
- Public Safety Infrastructure
Product Documents
Type
Name
Date
Actions
2025-08-25
F1423 Datasheet RevO
2025-08-25
PCN# : Q1703-02 Die size change| F1423NBGI(8)
2025-08-25
RF Amplifiers with Zero-Distortion Technology
2025-08-25
PCN# : 220019 Add Alternate Assembly Locations on VFQFPN and FCLGA Packages
2025-08-25
PCN# : 240008 Add alternate assembly locations on select VFQFPN packages
Part Number (6)
F1423NBGI
F1423NBGI8
F1423EVB-DI
F1423EVB-DLI
F1423EVB-SI
F1423EVB-SLI
