Product Details
- RF range: 1800MHz to 5000MHz
- 29.6dB typical gain at 3550MHz (can be optimized vs. bandwidth)
- 1.8dB NF at 3550MHz
- Adjustable OIP3 performance
- +37.3dBm OIP3 at 3550MHz and 140mA of bias current
- +33.8dBm OIP3 at 3550MHz and 100mA of bias current
- Adjustable OP1dB Performance
- +25.5dBm OP1dB at 3550MHz and 140mA of bias current
- +24.5dBm OP1dB at 3550MHz and 100mA of bias current
- 5V power supply
- Adjustable ICC ranging from 80mA to 160mA
- 50? single-ended input and output impedances
- 1.8V Logic compatible standby mode for power savings
- Operating temperature (TEPAD) range: -40 °C to +115 °C

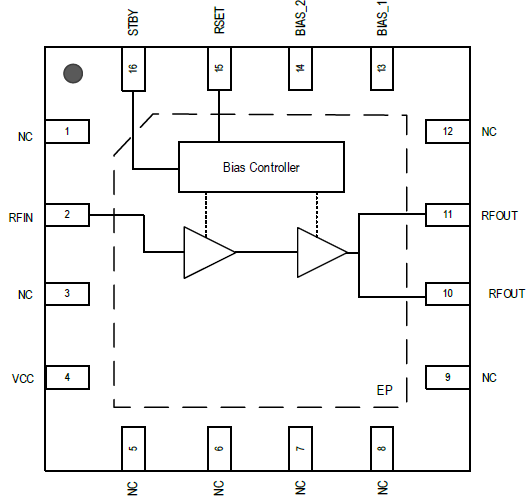

- 3mm × 3mm 16-VFQFPN package
The F1478 is a high-gain, two-stage RF amplifier designed to operate within the 1800MHz to 5000MHz frequency range. Using a single 5V power supply and with low ICC, the F1478 provides 29.6dB of gain (which can be optimized vs. bandwidth) and 1.8dB of noise figure. The F1478 realizes up to +37.3dBm OIP3 and 25.5dBm OP1dB at 3550MHz. The F1478 is packaged in a 3mm × 3mm, 16-VFQFPN, with matched 50? input and output impedances for ease of integration into the signal path. The silicon integration approach means that external BOM components are minimized for customer applications.
- 4G/5G cellular base stations
- Multi-mode, multi-carrier transmitters
- Active antenna systems
Product Documents
Type
Name
Date
Actions
2025-08-25
PCN# : TB1904-05 Add Sigurd Taiwan as alternate test location
2025-08-25
PCN# : TB1912-02 Convert Shipping Media from Tube or Tray to Cut Reel
2025-08-25
PCN# : TB1912-02(R1) Convert Shipping Media from Tube or Tray to Cut Reel
Part Number (6)
F1478NLGA
F1478NLGA8
F1478EVB-2p0
F1478EVB-2p5
F1478EVB-3p5
F1478EVB-4p7
