Product Details
- Frequency range: 2.3GHz to 5.0GHz
- 36.5dB typical gain at 3.6GHz
- 3.8dB typical NF at 3.6GHz
- 27dBm typical OP1dB at 3.6GHz
- -41dBc ACLR with LTE-TDD 20MHz signal at POUT = 15dBm average, 8dB PAR at 0.01% probability at 3.6GHz
- 50? single-ended input and output impedances
- 5V power supply
- 110mA typical quiescent current consumption
- 1.8V logic compatible Standby Mode for power savings
- Operating temperature (TEPAD) range: -40 °C to +115 C

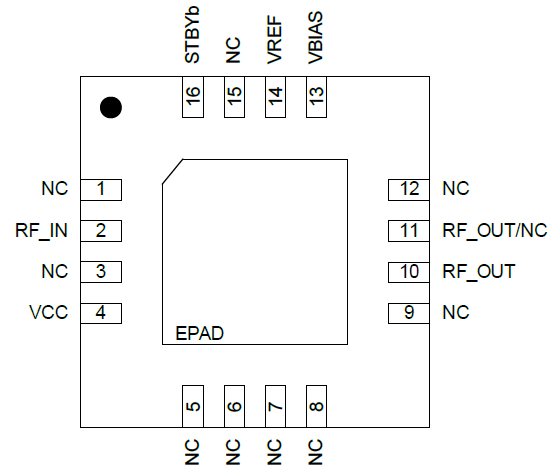

- 3mm x 3mm 16-VFQFPN package
The F1485 is a high-gain RF amplifier designed to operate within the 2.3GHz to 5.0GHz frequency range. Using a 5V power supply, the F1485 provides 36.5dB gain, 3.8dB of noise figure, and 27dBm OP1dB at 3.6GHz.
The F1485 is packaged in a 3mm x 3mm, 16-VFQFPN package, with matched 50? input and output impedances for ease of integration into the signal path.
- 5G sub-6GHz massive MIMO
- Wireless infrastructure base stations
- FDD or TDD systems
- Public safety infrastructure
- Military handhelds
- Repeaters and DAS
- General-purpose RF
Design & Development (Boards and Kit)
.PNG)
Evaluation Board for F1485 RF Amplifier
The F1485EVB is a fully populated evaluation board specifically designed to evaluate the F1485 RF Amplifier.
Part Number (5)
RA81F1485STGNM#BD0
RA81F1485STGNM#KD0
RTKA81F14852P500RU
RTKA81F14853P800RU
RTKA81F14854P700RU
