Product Details
- Frequency: 14GHz – 17GHz
- Gain: 19.5 dB
- Noise figure: 1.5dB
- Output P1dB: -1.5dBm
- Power consumption: 16mW/ch
- Channel isolation: 35dB
- Supply voltage: 0.9V – 1.0V
- Common bias control input
- Compact size for planar integration on ?/2 grid

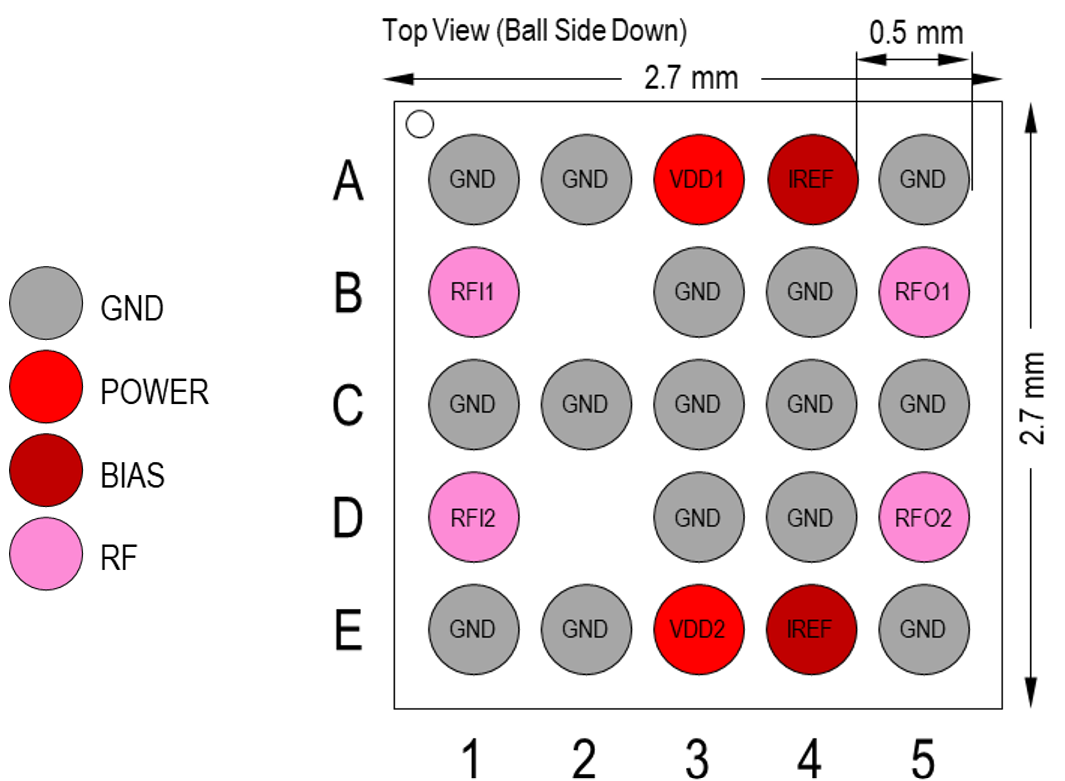

- 2.7mm × 2.7mm × 0.9mm, 23-pin BGA
- -40 °C to +85 °C ambient operating temperature range

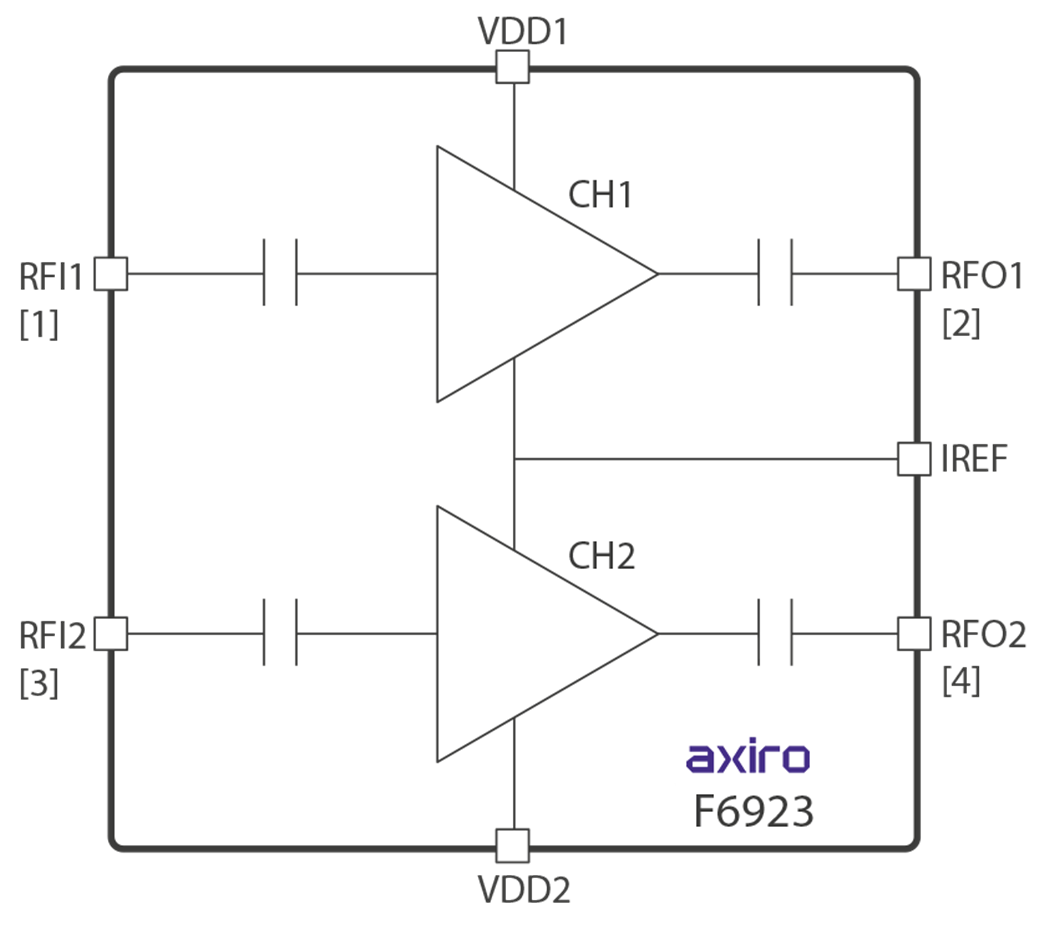

The F6923 is an ultra-low power consumption, dual-channel, low noise amplifier (LNA) RFIC designed for application in Ku- Band SATCOM planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation. An external bias current provides gain control, standby mode and temperature compensation.
The F6923 includes two independent gain/phase matched LNA channels in a compact 23-pin, 0.5mm pitch BGA package. All inputs and outputs are single-ended and 50? matched for ease of integration on to phased array antenna panels.
- Electronically Steered Phased Array Antennas (ESAs)
- Ku-Band Radar, SATCOM, and Common Data Link (CDL)
- Communication and Electronic Warfare (EW) Systems
