Product Details
- Frequency: 10.7GHz – 12.75GHz
- Gain: 24dB
- Noise Figure: 1.1dB
- Output P1dB: -1dBm
- Power consumption: 11.4mW/ch
- Supply voltage: 1.2V nominal
- Compact size for planar integration on ?/2 grid
- 2.7 × 2.7 × 0.9 mm, 23-pin BGA
- -40°C to +85°C ambient operating temperature range

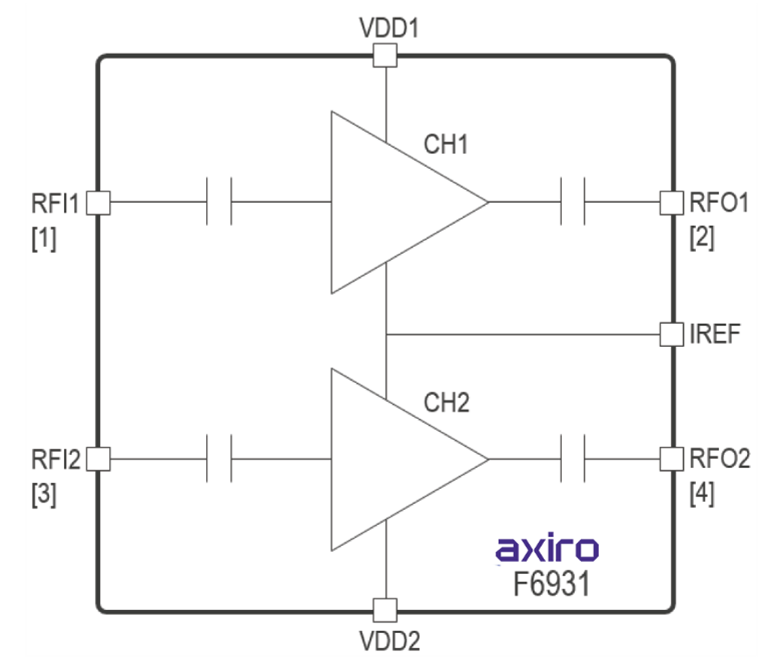

The F6931 is an ultra-low power consumption, dual-channel, silicon on insulator (SOI) low noise amplifier (LNA) RFIC designed for application in Ku?Band SATCOM planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation.
The F6931 includes two LNA channels in a compact 23-pin, 0.5mm pitch BGA package. All inputs and outputs are single-ended and 50? matched for ease of integration onto phased array antenna panels.
- Ku-Band Satellite Communication System
- Satellite Communications
Product Documents
Type
Name
Date
Actions
2025-08-25
F6931-Datasheet
2026-01-02
F69xx EVB User Manual
Design & Development
Type
Name
Date
Actions
2026-01-12
F6931_s4p
Boards and Kits

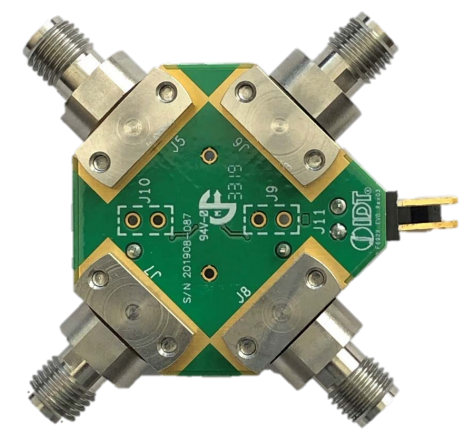

Evaluation Board for F6931 Dual-Channel Low Noise Amplifier 10.7GHz – 12.75GHz
The Axiro F6931EVB evaluation board is designed to reduce the learning cycle, build system-level confidence, and enable a rapid time to market using the F6931 low noise amplifier (LNA) RFIC. The kit includes all the essential components required for the rapid validation and evaluation of the electrical performance characteristics of the F6931 dual-channel LNA. The board provides access to all pins and functionality to enable full evaluation and validation.
Part Number (3)
RA81F6931GBX#BC0
RA81F6931GBX#HC0
RTKA81F6931000RU
