Product Details
-
Zero-DistortionTM technology for LTE/TDD bands
-
2300 to 2700 MHz freq range\Ideal for Multi-Carrier Systems
-
8.9 dB Gain
-
Ultra linear +43 dBm IP3O
-
Low NF < 10 dB
-
200 ? output impedance
-
Ultra high +13 dBm P1dBI
-
Pin Compatible w/existing solutions
-

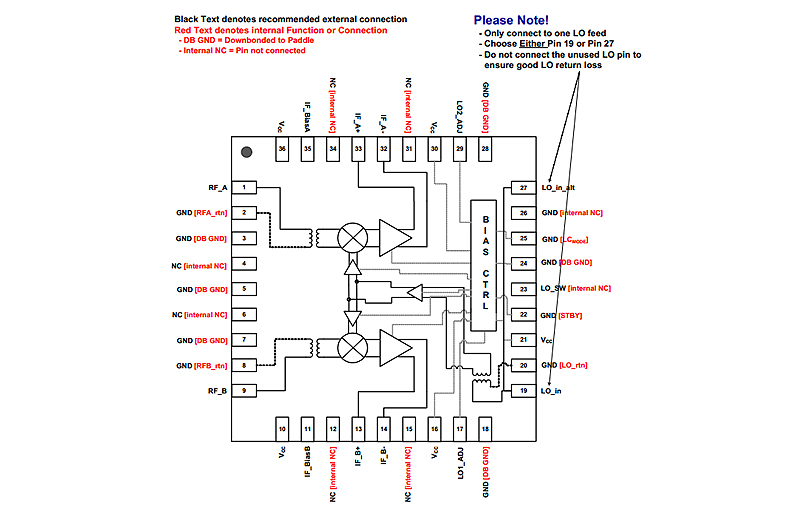

6x6mm 36-pin package
-
Power Down mode
-
~ 150 nsec settling from Power Down
-
Constant LO Port Z in STBY mode
-
Low Current Mode : ICC = 230 mA
-
Standard Mode: ICC = 330 mA
-
Can use with Low Side or High Side Injection
The IDT F1162 dual channel device is designed to operate with a single 5V supply. It is optimized for operation in a Multi-carrier BaseStation Receiver for LTE and TDD RF bands from 2300 - 2700 MHz with either Side Injection. IF frequencies from 50 to 500 MHz are supported. Nominally, the device offers +43 dBm Output IP3 with 335 mA of ICC. Alternately one can adjust 4 resistor values and a toggle pin to run the device in low current mode with +38 dBm Output IP3 and 230 mA of ICC.
A member of IDT’s Zero-Distortion™ family, this RF to IF mixer reduces distortion for improved SNR while simultaneously reducing power consumption.
Product Documents
Type
Name
Date
Actions
2025-08-25
PCN# : A1406-01 Alternate Assembly Locations for Selective Package
2025-08-25
PCN# : TB1602-01 Alternate Test Location for Select Devices
Part Number (2)
F1162NBGI
F1162NBGI8
