F1763

Ultra-Linear Single-Channel Mixer for Rx Applications

Datasheet Contact sales

Product Details

0
1
2
0thubnail
1thubnail
2thubnail
  • Single mixer ideal for multi-carrier systems
  • 3 versions cover 700MHz to 2700MHz
  • Low-side or High-side LO
  • 11.8dB Gain
  • Ultra-linear +43dBm IP3O using HS LO or +37.5 dBm IP3O using LSLO
  • 9.7dB NF
  • 200? output impedance
  • Wide flat-performance IF BW
  • Drives ADC directly for DPD applications
  • Low power consumption

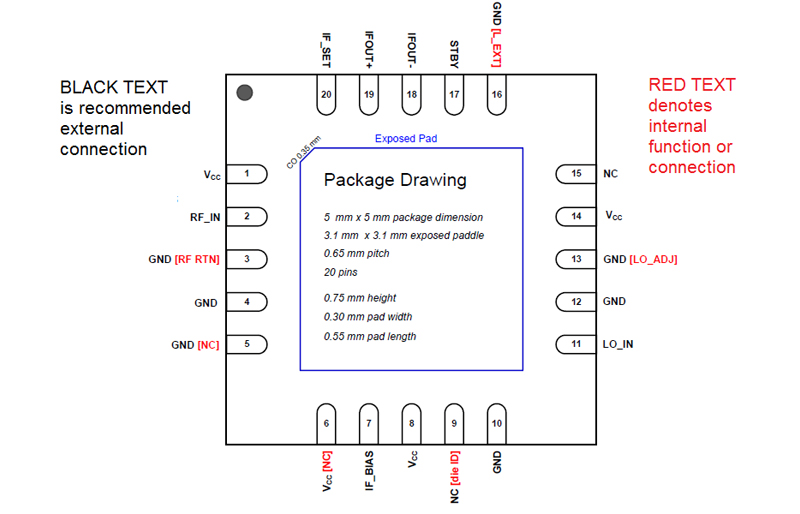

  • 5mm x 5mm 20-pin package
  • Standby mode

The F1701, F1751, and F1763 are pin-compatible RF to IF single-channel downconverting mixers ideal for many receiver (Rx) applications. These devices employ Zero-Distortion™ technology to practically eliminate the third order intermodulation response. The devices feature high gain (~12dB) and a low noise figure in addition to outstanding output IP3 (> +40dBm).

Product Documents

Product Change Notice

2025-08-25

PCN# : A1402-04 Add Alternate Assembly & Test

pdf | 45.9 KB
Application Note

2025-08-25

AT0104 F1763 Gain Flatness.pdf

pdf | 568.7 KB
Application Note

2025-08-25

AT0104 F1763 Gain Flatness.pdf

pdf | 568.7 KB
Product Brief

2025-08-25

RF Mixer Family

pdf | 1.12 MB
