Product Details
- RF range: 24.25GHz to 29.5GHz
- IF range: 2.5GHz to 6GHz
- Two integrated LO frequency doublers
- Extended TX output power with DAPTM technology
- Enhanced calibration for LO leakage & image rejection
- Operating temperature (TA) range: -40°C to +95°C
- 4.0 × 4.5mm, 49-BGA package

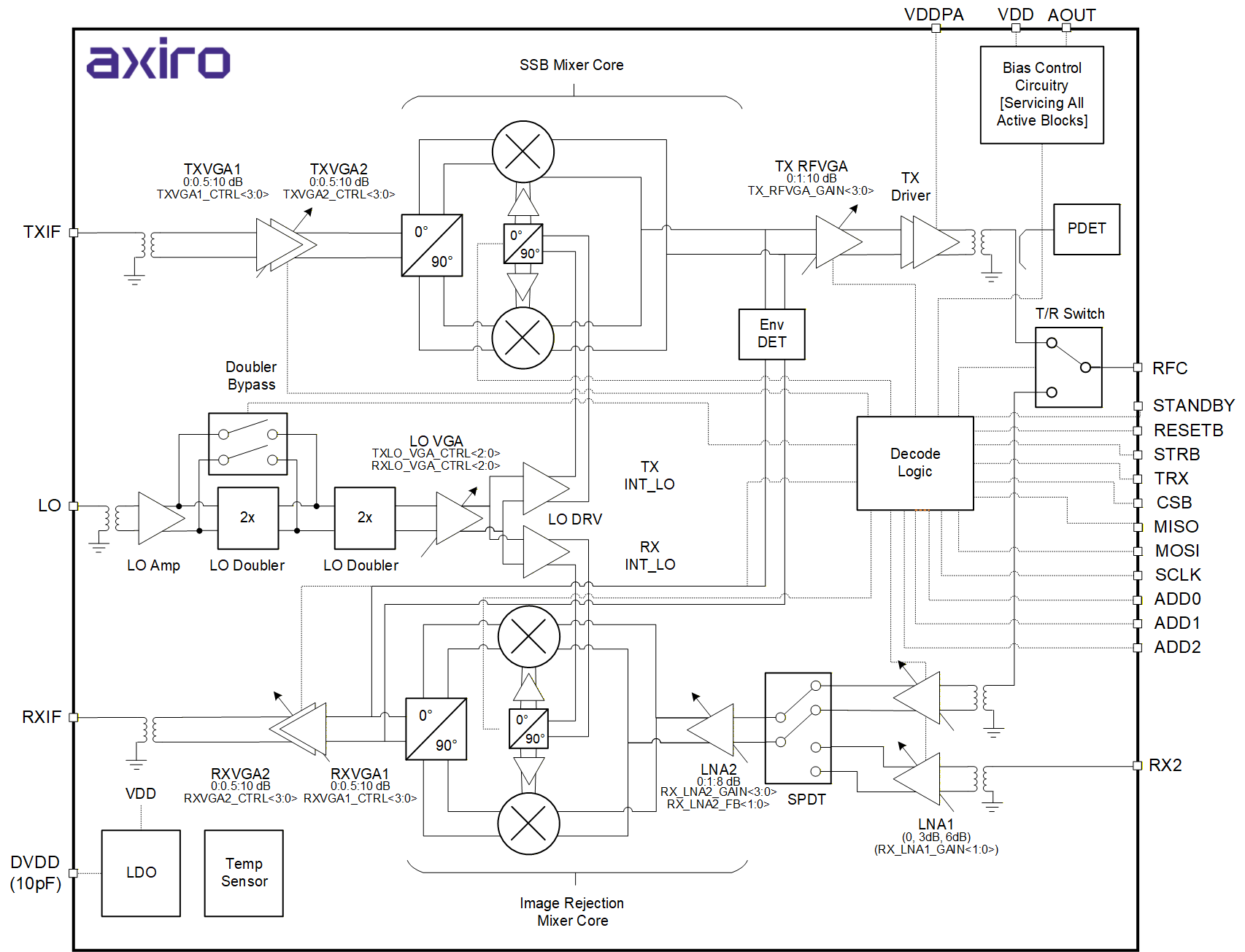

The F5701 is the 2nd generation mmWave up/down-converter by Renesas. It is optimized for 5G beamforming applications targeting n257/n258/n261 bands, and offers several upgrades in terms of RF performance and features. The device utilizes real-IF heterodyne architecture with low-side local oscillator (LO) injection to convert 2.5GHz to 6GHz IF signals to the 5G NR FR-2 bands spanning the 24.25 GHz to 29.5 GHz spectrum. External LO feed requirements are eased by the device’s two sequential on-chip LO frequency doublers which yield net multiplication factors of either 2x or 4x. All RF, IF, and LO ports employ single-ended 50? impedances for ease of integration into the signal path.

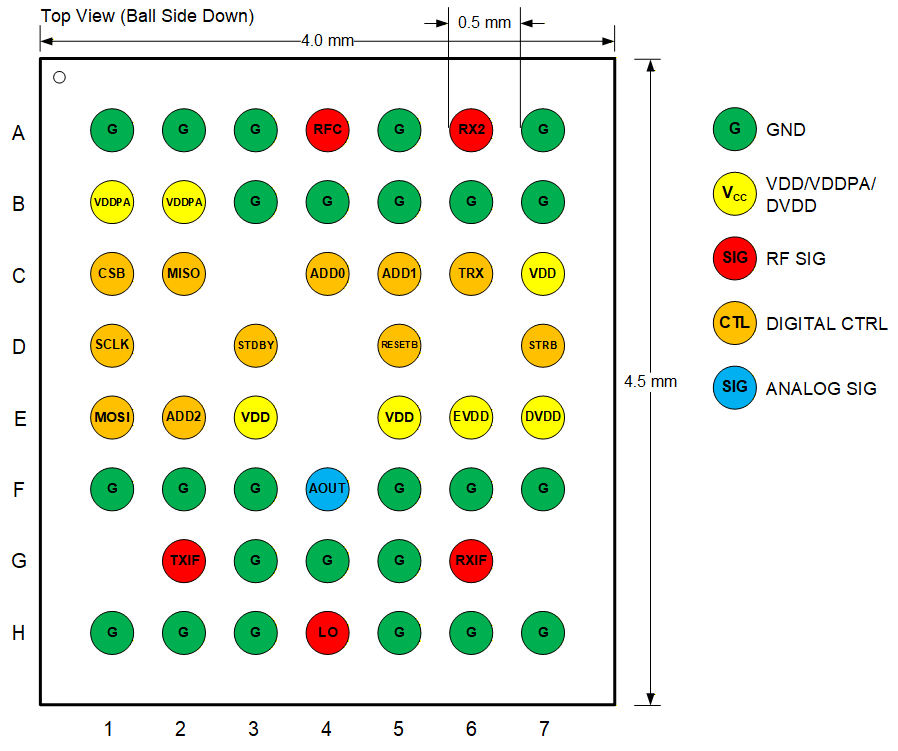

The F5701 is controlled through an advanced high-speed SPI protocol and packaged in 4.0 × 4.5mm, 49-BGA package. It is rated for operation over the -40°C to 95°C temperature range.
Boards and Kits
F5701 Evaluation Kit (EVK)

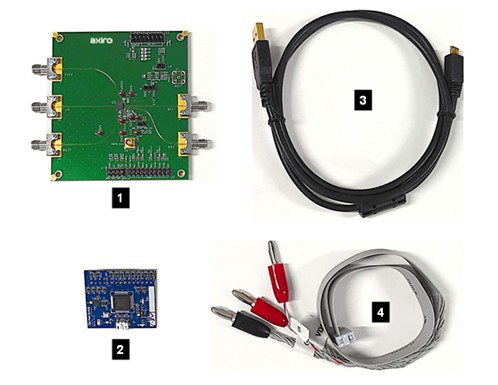

The F5701 Evaluation Kit (EVK) is designed to help users evaluate the F5701 RF upconverter/ downconverter device. This document provides the necessary information and a brief overview of the associated control software Graphical User Interface (GUI). Axiro recommends that you review the corresponding device datasheets and use them as a reference to supplement the information provided in this document.
Part Number (3)
RA81F5701GAVG#BC0
RA81F5701GAVG#HC0
RTKA81F5701
