Product Details
- Serial and 6-bit parallel interface
- 31.5dB control range
- 0.5dB step
- Glitch-Free™, low transient overshoot
- Attenuation error < 0.22dB at 2GHz
- Low insertion loss < 1.4dB at 2GHz
- Ultra linear >+63dBm IP3I
- 500ns switching speed
- Stable integral non-linearity over temperature
- 3.0V to 5.25V supply
- 1.8V or 3.3V control logic
- -55 °C to +105 °C operating temperature

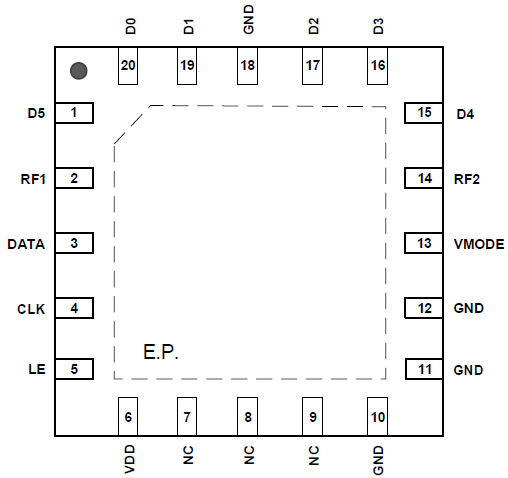

- 4mm x 4mm thin QFN 20-pin package
- Low current consumption 550µA typ.
The F1912 Glitch-Free™ Digital Step Attenuator (DSA) offers very high reliability due to its monolithic silicon die construction in a compact 4mm x 4mm 20-pin package QFN package. The silicon design has very low insertion loss and low distortion (> +60dBm IP3I.) The device has pinpoint accuracy and settles to a final attenuation value within 400nsec. Most importantly, the F1912 includes Renesas' Glitch-Free technology which results in low overshoot and ringing during MSB transitions.
- Base Station 2G, 3G, 4G, TDD Radio Cards
- Repeaters and E911 systems
- Digital Pre-Distortion
- Point-to-Point Infrastructure
- Public Safety Infrastructure
- WiMAX Receivers and Transmitters
- Military Systems, JTRS Radios
- RFID Handheld and Portable Readers
- Cable Infrastructure
Product Documents
Type
Name
Date
Actions
2025-08-25
PCN# : TB1604-01 Alternate Test Location for F1912NCGI
2025-08-25
PCN# : TB1811-01 Add Alternate Test Location on Select Devices
Design & Development (Boards and Kit)
Evaluation Board for F1912 6-bit Digital Step Attenuator
The F1912EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1912 digital step attenuator. Attenuation may be set using either the F1912’s parallel control input or its serial control input. A dip switch on the evaluation board allows one to set the attenuation state without off-board connections to the control inputs.
The F1912EVS is a complete hardware and software solution that allows customers to digitally control the F1912EVBI with the USB output on a computer. The kit includes the F1912EVBI board, as well as a USB Digital Control Board and interface cables. The software, guides , and instructional videos are available for download/viewing on the page.
Part Number (4)
F1912NCGI
F1912NCGI8
F1912EVBI
F1912EVS
