Product Details
- 5MHz to 3000MHz frequency range
- Glitch-Free™ low transient overshoot
- Low insertion loss < 1.4dB at 1GHz
- Excellent linearity +64dBm IIP3
- Attenuation step error 0.1dB at 1GHz
- Serial and Parallel interface 31.75dB range
- Low spurious design
- 3V/5V supply, 1.8V/3.3V control logic
- Fast settling time
- Class 1C JEDEC ESD (1.5kV HBM)

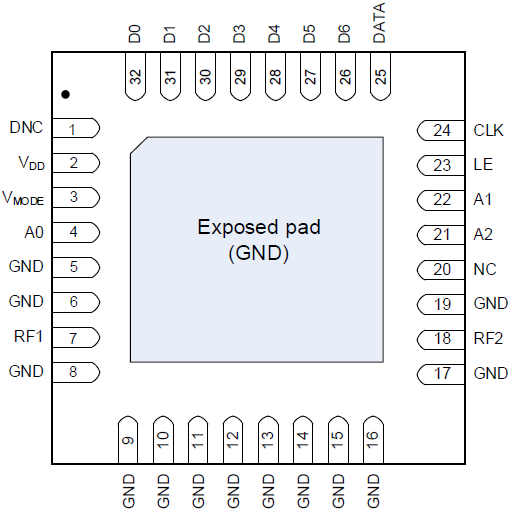

- 5mm x 5mm 32-VFQFPN package
The F1977 digital step attenuator featuring Glitch-Free™ technology improves system reliability and settling time. It has an attenuation range of 31.75dB with excellent accuracy and very low distortion and insertion loss.
- CATV infrastructure
- CATV set-top boxes
- CATV satellite modems
- Data network equipment
- Fiber networks
Product Documents
Type
Name
Date
Actions
Product Brief
2025-08-25
Digital Step Attenuators
pdf |
1.07 MB
Guide
2025-08-25
RF Products Evaluation System (EVS) Digital Control Software
pdf |
2.83 MB
Datasheet
2025-08-25
F1977 Datasheet REV1
pdf |
10.67 MB
Application Brief
2025-08-25
IDT Products for Wired Broadband Applications
pdf |
686.5 KB
Part Number (4)
F1977NBGI
View Details
F1977NBGI8
View Details
F1977EVBI
View Details
F1977EVS
View Details
