F84316
1432MHz to 1517MHz 4W, 32dB Macro Driver Power Amplifier Module for 4G/5G Applications
Product Details
- Highly integrated single-channel 2-stage PA module for 4G/5G FDD RUs
- RF input / output matched to 50 Ohms (DC Blocked)
- Operating frequency range: 1432MHz - 1517MHz
- Typical gain = 32.0dB at 1475MHz (1C-LTE 20MHz)
- Typical P3dB = 48.8dBm at 1475MHz (Pulsed CW)
- Typical PAE = 25.8% at 4W Pavg, 13dB back-off (1C-LTE 20MHz)
- Typical VBW = 200MHz
- -40 deg C to +125 deg C case operating temperature

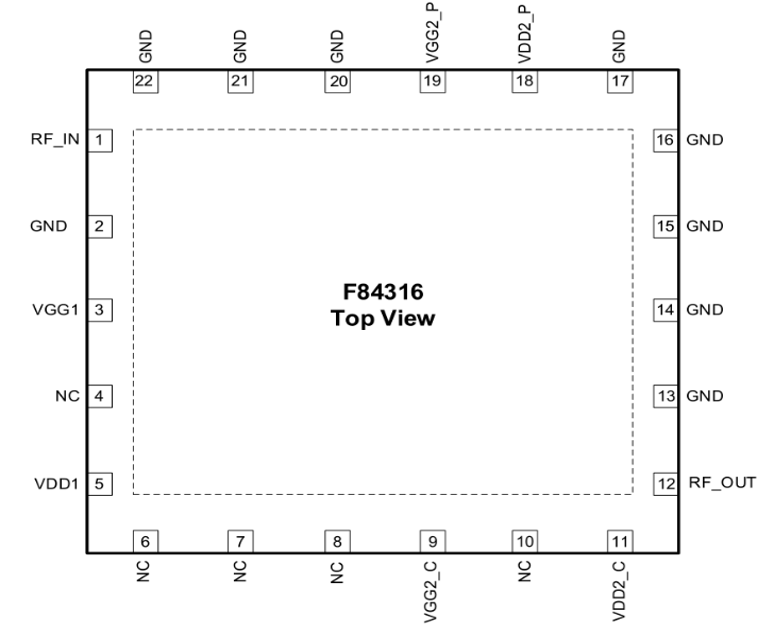

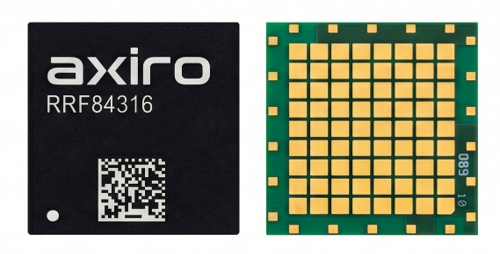

- 20 x 18mm 22-pin LGA package
The F84316 is a 1432MHz to 1517MHz multi-chip Doherty power amplifier module designed to operate as a macro stage driver. The device is housed in an SMT package with RF input and output matched to 50 Ohms.
The highly integrated single-channel module is designed for 4W average output power (13dB output back-off) with high efficiency and gain from a 50V supply.
Competitive Advantages
- Optimized performance for band n50
- High gain
- High average power efficiency
- FDD DPD friendly
Applications
- Wireless infrastructure
- 5G Macro drivers
- Distributed antenna systems
- General RF
Product Documents
Type
Name
Date
Actions
2026-06-12
F84316 Datasheet
Boards and Kits
Evaluation Board for F84316
Axiro PAM Evaluation kits are designed to reduce the learning cycle, build system level confidence, and enable a rapid time to market.
Included components:
- PAM Evaluation board
- Power supply cables
- Heat sink mounting plate
Part Number (3)
RRF84316-B00
RRF84316-K00
RTKRF84316-1P5
