Product Details
- Highly integrated single-channel 3-stage PA module for 4G/5G FDD RUs
- RF input / output matched to 50 Ohms (DC Blocked)
- Operating frequency range: 1800MHz - 2200MHz
- Typical gain = 46.8dB at 2000MHz (1C-LTE 20MHz)
- Typical P3dB = 52.0dBm at 2000MHz (Pulsed CW)
- Typical PAE = 49% at 16W Pavg (1C-LTE 20MHz)
- Typical VBW = 430MHz
- -40 deg C to +125 deg C case operating temperature

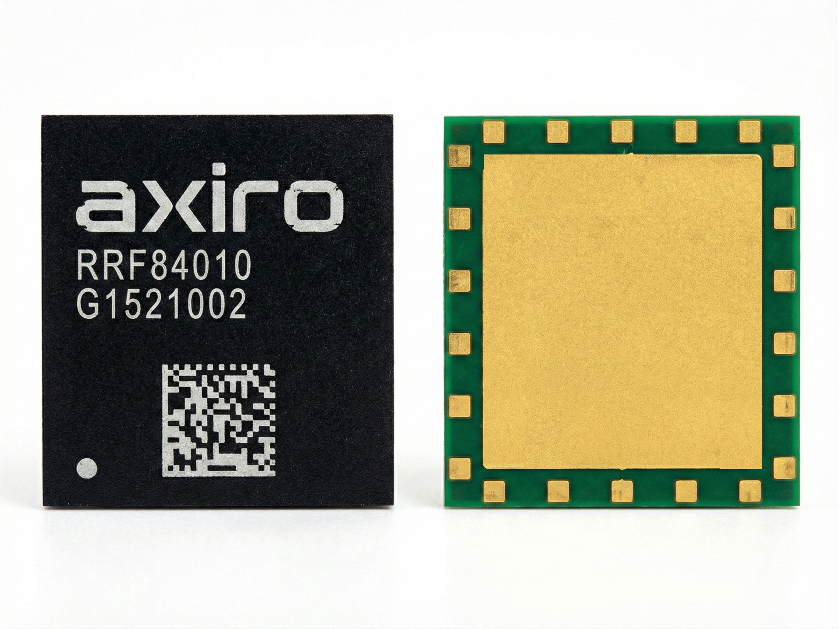

- 20 x 18mm 22-pin LGA package
The F84010 is a 1.8GHz to 2.2GHz multi-chip Doherty power amplifier module. The device is housed in an SMT package with RF input and output matched to 50 Ohms.
The highly integrateed single-channel module is designed to achieve up to 16W average output power (10dB output back-off) with high efficiency and gain.
Competitive Advantages
- Wide frequency coverage from 1.8GHz to 2.2GHz (B1, B2, B3, B25, and B66 band coverage)
- Large iBW of 365MHz for multi-band operation
- High average power efficiency
- FDD DPD friendly
