Product Details
- Highly integrated single-channel 3-stage PA module for 4G/5G FDD RUs
- RF input / output matched to 50 Ohms (DC Blocked)
- Operating frequency range: 2496MHz - 2690MHz
- Typical gain = 46.6dB at 2595MHz (1C-LTE 20MHz)
- Typical P3dB = 50.4dBm at 2595MHz (Pulsed CW)
- Typical PAE = 45.5% at 13W Pavg (1C-LTE 20MHz)
- Typical VBW = 360MHz
- -40 deg C to +125 deg C case operating temperature

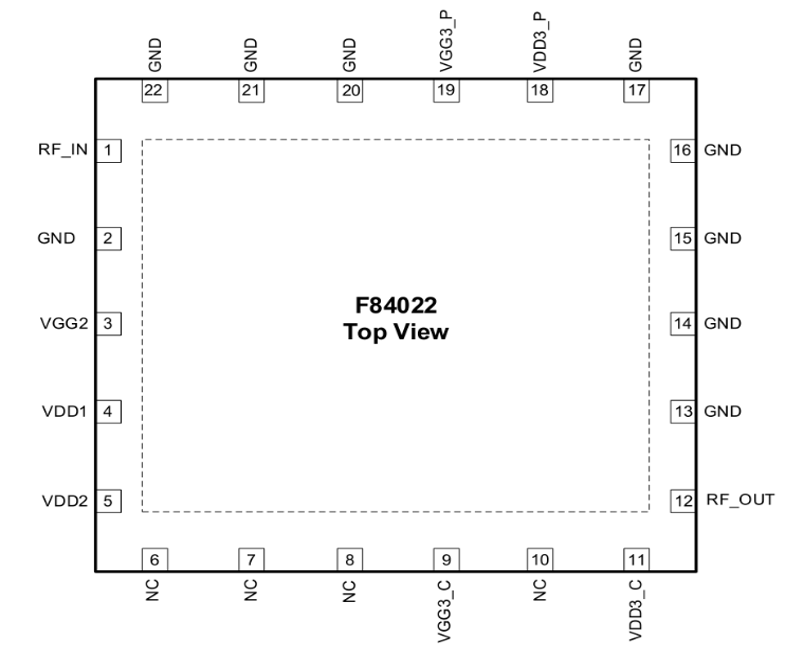

- 20 x 18mm 22-pin LGA package

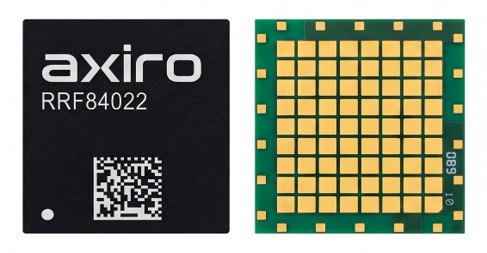

The F84022 is a 2.496GHz to 2.69GHz multi-chip Doherty power amplifier module. The device is housed in an SMT package with RF input and output matched to 50 Ohms.
The highly integrated single-channel module is designed to achieve up to 13W average output power (10dB output back-off) with high efficiency and gain from a 48V supply.
Competitive Advantages
- Optimized performance for B41
- High gain
- High average power efficiency
- FDD DPD friendly
Product Documents
Type
Name
Date
Actions
2026-06-12
F84022 Datasheet
Boards and Kits
Evaluation Board for F84022
Axiro PAM Evaluation kits are designed to reduce the learning cycle, build system level confidence, and enable a rapid time to market.
Included components:
- PAM Evaluation board
- Power supply cables
- Heat sink mounting plate
Part Number (3)
RRF84022-B00
RRF84022-K00
RTKRF84022-2P6
