Product Details
- 8GHz to 12GHz operation
- Independent gain and phase control
- Supply voltages:
- Core (VDD): 2.4V - 2.6V
- PA (VDDPA):
- 1.1V - 1.3V (Nominal)
- 1.9V - 2.1V (High power)
- Internal LDO: 1.8V for digital
- Fast and flexible digital interface
- Integrated DACs for external FEM gate bias
- On-chip ADC for internal/external voltage sensing
- Compact size for planar integration on ?/2 grid:

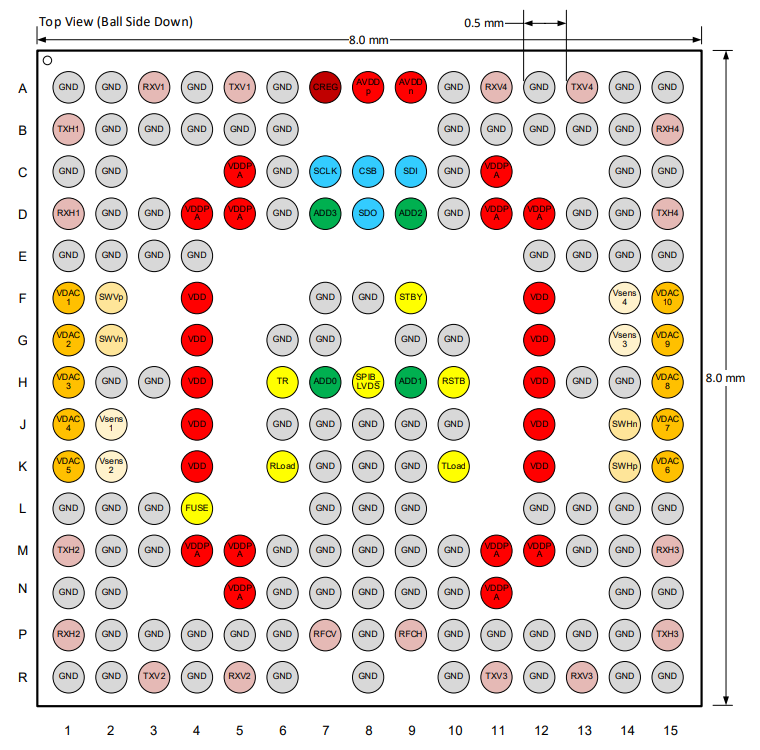

- 8.00 × 8.00 × 0.88 mm, 180-FCCSP (FCBGA)
- Ambient operating temperature: -40°C to +95°C

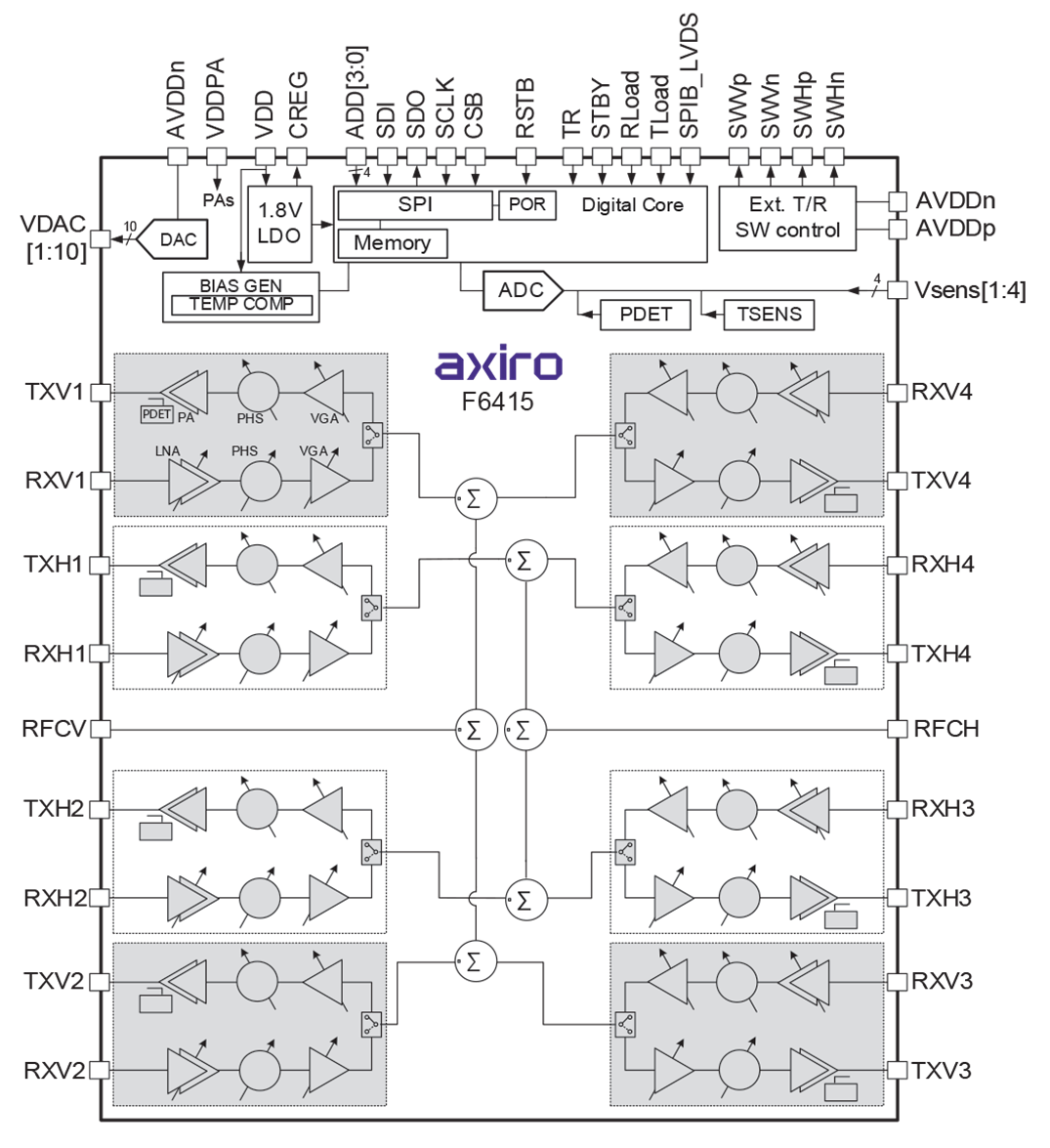

The F6415 is an 8-channel, dual-polarized, transmit/receive active beamforming IC (TRX BFIC) designed for use in X/Ku-band planar phased array antennas. The BFIC has eight antenna ports with independent phase/amplitude control channels and two common ports, allowing for independent combining and distribution of vertical and horizontal signal paths. All inputs and outputs are single-ended and 50? matched for ease of integration onto phased array antenna panels.
The F6415 has integrated high-resolution voltage DACs designed to provide T/R-synchronized gate bias control signals to external GaAs/GaN front-end modules (FEMs). It also contains an ADC and dedicated voltage sensing pins for voltage sensing from off-chip power detectors.
- FMCW and pulse-doppler radar
- X/Ku-band SATCOM and Point-to-Point terminals
- Electronically Steered Phased Array Antennas (ESAs)
