Product Details
- RF range: 400MHz to 4200MHz
- 17dB typical gain
- +28.5dBm OP1dB
- 5V power supply
- Adjustable DC Bias
- Bias control compatible for 3.3V and 5V operation
- 50? single-ended input and output impedances
- Standby mode for power savings
- Internal DC overvoltage protection
- Internal RF overdrive protection
- On-chip ESD protection
- Operating temperature (TEP) range: -40 °C to +115 °C
- 3mm × 3 mm, 16-VFQFPN package
The F1471 is a high linearity RF driver amplifier designed to operate within the 400MHz to 4200MHz frequency band. Utilizing a single 5V power supply and only 130mA of ICQ, the F1471 provides 17dB of gain and +28.5dBm OP1dB.
The F1471 is packaged in a 3mm × 30mm, 16-VFQFPN package, with matched 50? input and output impedances for ease of integration into the signal path.
Product Documents
Type
Name
Date
Actions
2025-08-25
RF Amplifiers with Zero-Distortion Technology
2025-08-25
F1471 Datasheet
2025-08-25
Macro BTS Product Overview
2025-08-25
Power Line Communication and Sub-GHz Wireless Communication Solutions Brochure
2025-08-25
PCN# : 240008 Add alternate assembly locations on select VFQFPN packages
Boards and Kits
.png)

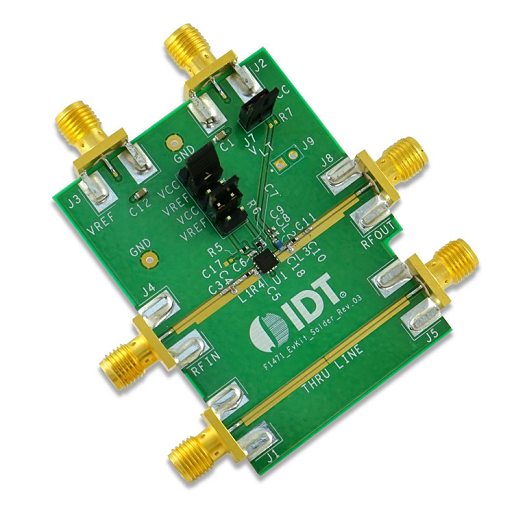

Evaluation Board for F1471 RF Amplifier - 3800MHz to 4200MHz Frequency Band
The F1471EVB-4P0 is a fully populated evaluation board specifically designed to evaluate the frequency band of 3800MHz to 4200MHz for the F1471 High Gain RF Amplifier.
Part Number (7)
F1471NTGI
F1471NTGI8
F1471EVB-0P5
F1471EVB-2P1
F1471EVB-2P6
F1471EVB-3P6
F1471EVB-4P0
