产品详情
- RF 范围: 400MHz to 4200MHz
- 17dB typical 获得
- +28.5dBm OP1dB
- 5V power supply
- Adjustable DC Bias
- Bias control compatible for 3.3V and 5V operation
- 50? single-ended input and 输出阻抗s
- Standby mode for power savings
- Internal DC overvoltage protection
- Internal RF overdrive protection
- On-chip ESD protection
- Operating temperature (TEP) 范围: -40 °C to +115 °C

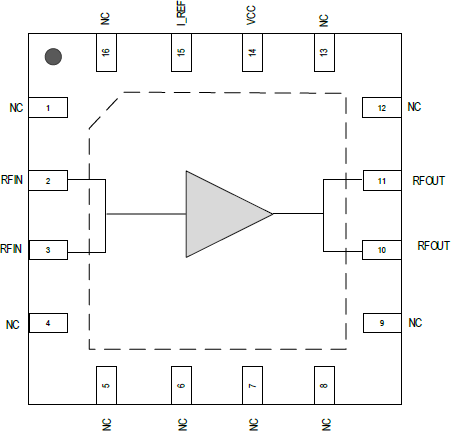

- 3mm × 3 mm, 16-VFQFPN 包裹
The F1471 is a 高 linearity RF driver amplifier designed to operate within the 400MHz to 4200MHz frequency band. Utilizing a single 5V power supply and only 130mA of ICQ, the F1471 provides 17dB of 获得 and +28.5dBm OP1dB.
The F1471 is 包裹d in a 3mm × 30mm, 16-VFQFPN 包裹, with matched 50? input and 输出阻抗s for ease of integration into the signal path.
产品文档
类型
姓名
日期
动作
2025-08-25
RF Amplifiers with Zero-Distortion Technology
2025-08-25
F1471 数据表
2025-08-25
Macro BTS Product 概览
2025-08-25
Power Line Communication and Sub-GHz Wireless Communication Solutions Brochure
2025-08-25
PCN# : 240008 Add alternate assembly 地点s on 选择 VFQFPN 包裹s
Boards and Kits
.png)
Evaluation Board for F1471 RF Amplifier - 3800MHz to 4200MHz Frequency Band
The F1471EVB-4P0 is a fully populated evaluation board specifically designed to evaluate the frequency band of 3800MHz to 4200MHz for the F1471 高 获得 RF Amplifier.
