Product Details
- Frequency: 17.7GHz – 21.2GHz
- Gain: 22dB
- Noise Figure: 1.2dB
- Output P1dB: -2dBm
- Power consumption: 15mW/ch
- Supply voltage: 1.2V nominal
- Compact size for planar integration on ?/2 grid
- 2.7 × 2.7 × 0.9 mm, 23-pin BGA
- -40°C to +85°C ambient operating temperature range
The F6932 is an ultra-low power consumption, dual-channel, silicon on insulator (SOI) low noise amplifier (LNA) RFIC designed for application in Ka?Band SATCOM planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation.

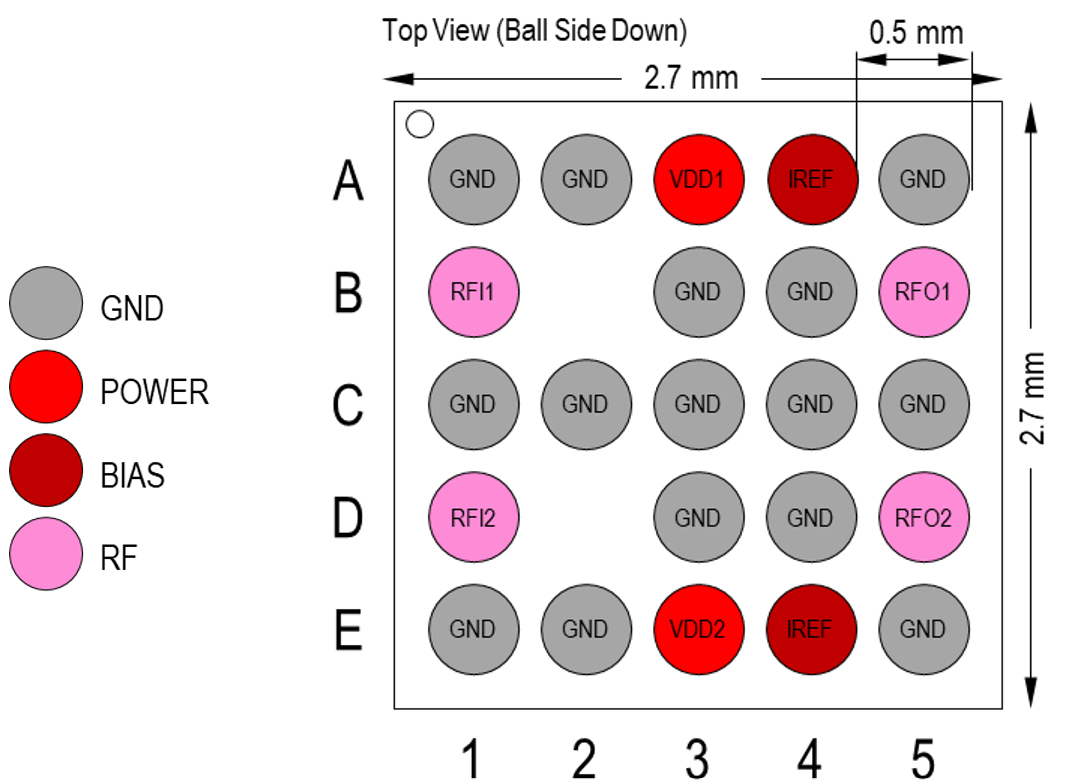

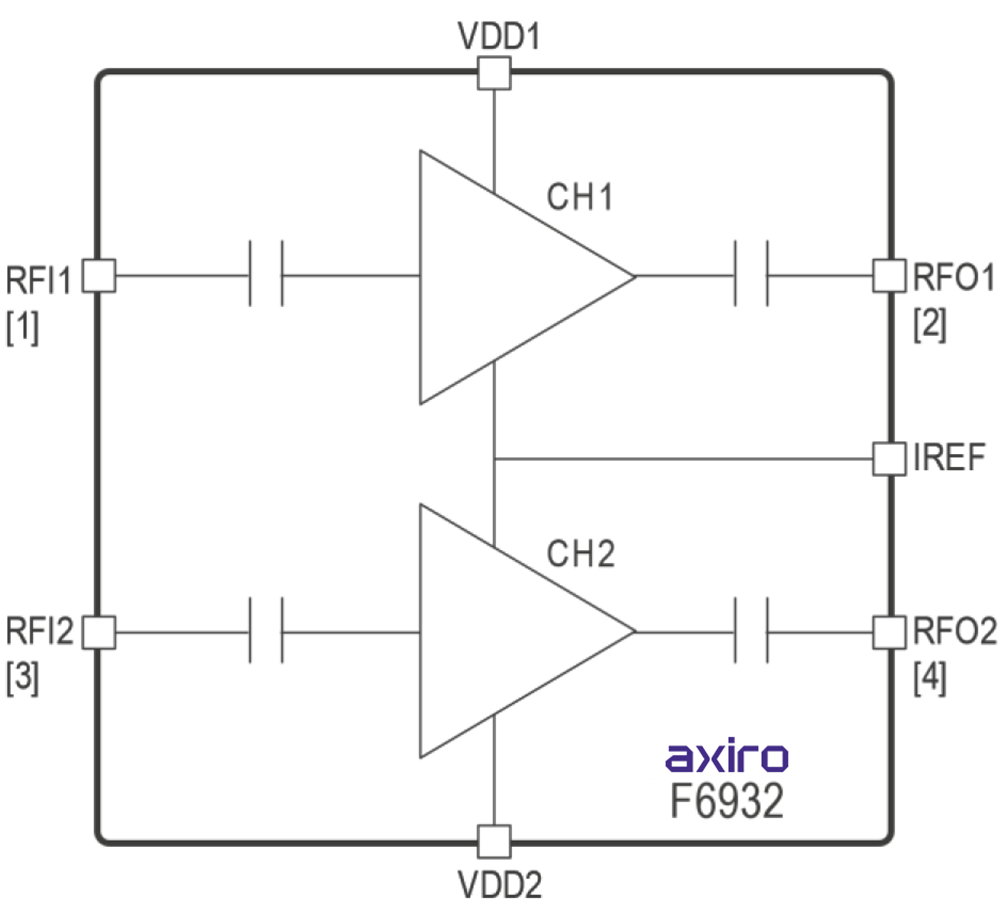

The F6932 includes two LNA channels in a compact 23-pin, 0.5mm pitch BGA package. All inputs and outputs are single-ended and 50? matched for ease of integration onto phased array antenna panels.
Product Documents
Type
Name
Date
Actions
Design & Development (Boards and Kit)
F6932 Dual-Channel Low Noise Amplifier for Ka-Band SATCOM Evaluation Board

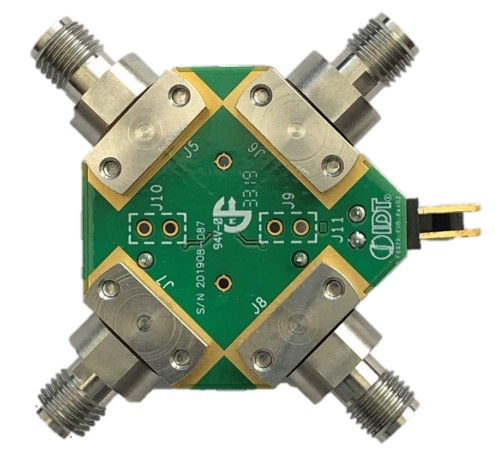

The Renesas F6932EVB evaluation board is designed to reduce the learning cycle, build system-level confidence, and enable a rapid time to market with the F6932 ultra-low power consumption, dual-channel, silicon on insulator (SOI) low noise amplifier (LNA) RFIC. The kit includes all the essential components required for the rapid validation and evaluation of the electrical performance characteristics of the F6932 dual-channel LNA. The board provides access to all pins and functionality to enable full evaluation and validation.
Part Number (3)
RA81F6932GBX#BC0
RA81F6932GBX#HC0
RTKA81F6932000RU
