F1441EVK

The F1441EVK is a fully populated evaluation board that allows the customer to evaluate the F1441 Variable 获得 Amplifier with an integrated digital 步 attenuator. The F1441 is controlled with serial communication input using a USB digital interface board that connects to the PC.

The F1441EVK consists of the following:

• F1441 Evaluation Board
• USB Digital Interface Board
• USB Cable (USB-A to USB-B micro)

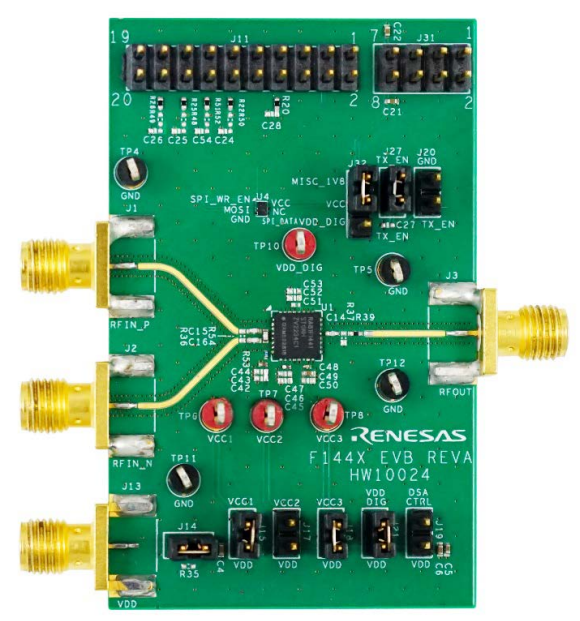

The F1441 Evaluation Board consists of the following:

• SMA connectors for RF IOs and power supply connection
• Header pins for power supply and digital interface connection
• Jumper configurable power supply connection
• Clip-on test point access for voltage sense
