产品详情
- F1953EVBI (Evaluation Board)
- SMA connectors for RF input and RF output
- Power supply connected either through SMA connector or header pins
- Attenuator settable with DIP switch, serial port interface (SPI) or parallel control interface
- F1953EVS (Evaluation Solution)
- Includes product evaluation board described above
- Includes Digital Control Board and all necessary cables
- Interfaces with the Digital Control Software – can be downloaded from this page

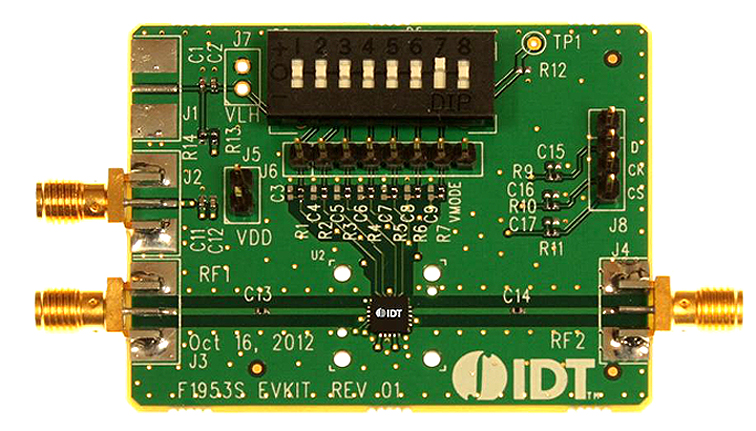

The F1953EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1953 digital 步 attenuator. Attenuation may be set using either the F1953’s parallel control input or its serial control input. A dip switch on the evaluation board allows one to set the attenuation 状态 without off-board connections to the control inputs.
The F1953EVS is a complete hardware and software solution that allows customers to digitally control the F1953EVBI with the USB output on a computer. The kit includes the F1953EVBI board, as well as a USB Digital Control Board and interface cables. The software, guides , and instructional videos are available for download/查看ing on this page.
产品文档
类型
姓名
日期
动作
数据表
2025-08-24
F1953 数据表
pdf |
1.51 MB
Guide
2025-08-24
RF 产品 Evaluation System (EVS) Digital Control Software
pdf |
2.83 MB
