产品详情
- 50? or 75? RF connectors for RFC, RF1 and RF2, and the "Thru" calibration ports for easy calibration prior to making RF measurements
- The F2972 Evaluation Kit has a number of control 特征 available
- Refer to the Evaluation Kit 应用 Circuit , Evaluation Kit Picture and 应用s 信息 in the 数据表 to properly connect to and control the evaluation board 特征
- All bias and logic controls are applied to the appropriate pins of the pin header located on the evaluation board

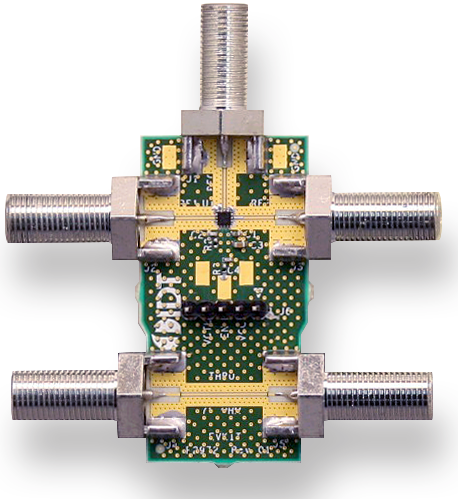

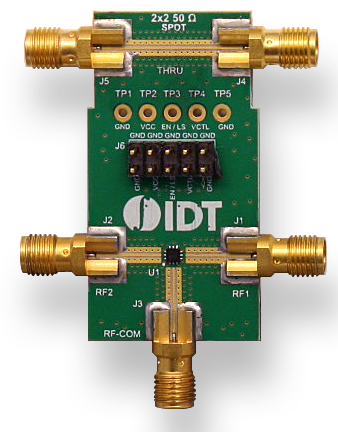

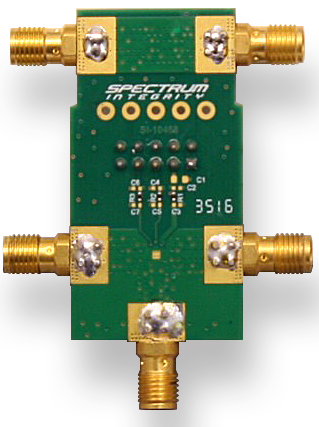

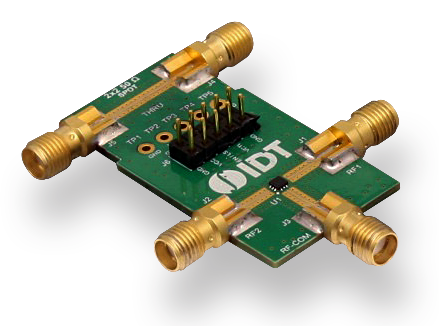

The F2972EVBI is a fully populated evaluation board, enabling easy RF evaluation of the product. It is available in 50? or 75? terminating impedance.
“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by 申请ing the correct control logic voltage to the control pins as outlined in the 数据表. DC power, ground and the control voltages are applied to the pin header.
产品文档
类型
姓名
日期
动作
数据表
2025-08-24
F2972 数据表
pdf |
5.72 MB
