产品详情
- Broadband 700MHz to 1.1GHz
- 17.4dB typical 获得 at 960MHz
- 4.5dB noise figure at 960MHz
- +42dBm OIP3 at 960MHz
- +23.2dBm output P1dB at 960MHz
- Single 5V 电源电压
- ICC = 105mA
- -40 °C to +105 °C operating temperature
- 50? single-ended input/输出阻抗s
- Standby mode for power savings

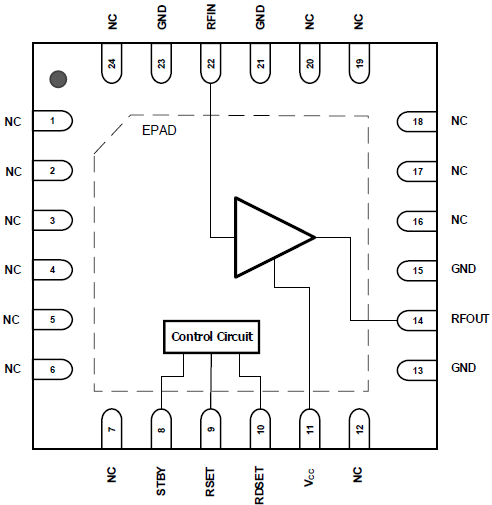

- 4mm x 4mm 24-QFN 包裹
The F1420 is a 高-获得/高-linearity RF amplifier used in 高-performance RF 应用s. The F1420 provides 17.4dB 获得 with +42dBm OIP3 and a 4.5dB noise figure at 960MHz, and uses a single 5V supply and 105mA of ICC. The F1420 is 包裹d in a 4mm x 4mm 24-QFN with 50? RF input and RF 输出阻抗s for ease of integration into the signal path.
产品文档
类型
姓名
日期
动作
2025-08-25
F1420 数据表 - RevO
2025-08-25
RF Amplifiers with Zero-Distortion Technology
2025-08-25
PCN#: TB1901-01 Add Alternate Test 地点 on 选择 Devices
2025-08-25
PCN# : TB1912-02 Convert 船运 Media from Tube or Tray to Cut Reel
2025-08-25
PCN# : TB1912-02(R1) Convert 船运 Media from Tube or Tray to Cut Reel
2025-08-25
PCN# : 230017 Add alternate assembly 地点 on 选择 VFQFPN 包裹
2025-08-25
PCN# : 240016 Add JCET| China as an alternate assembly 地点 on 选择 VFQFPN 包裹s
Boards and Kits
.png)

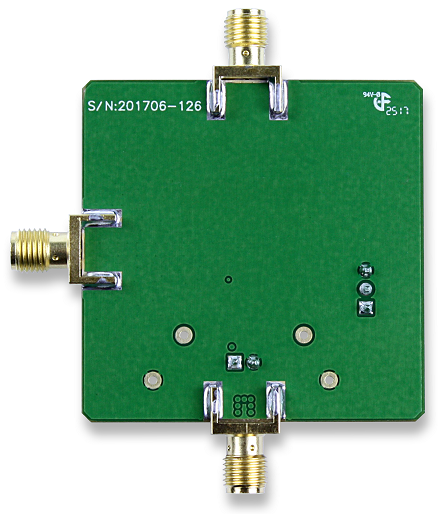

Evaluation Board for F1420 RF Amplifier 700MHz to 1.1GHz
The F1420EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1420 RF amplifier.
