产品详情
- Broadband 1700MHz to 2.2GHz
- 20.3dB typical 获得 at 1900MHz
- 5.5dB noise figure at 1900MHz
- +40dBm OIP3 at 1900MHz
- +23dBm output P1dB at 1900MHz
- Single 5V 电源电压
- ICC = 138mA
- -40 °C to +105 °C operating temperature
- 50? single-ended input/输出阻抗s
- Standby mode for power savings

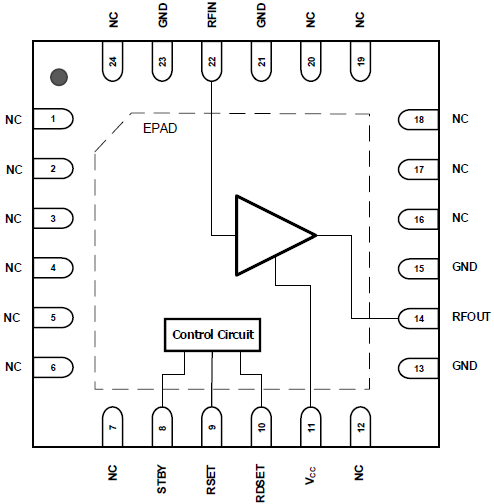

- 4mm × 4mm 24-QFN 包裹
The F1421 is a 高 获得/高 linearity RF amplifier used in 高-performance RF 应用s. The F1421 provides 20.3dB 获得 with +40dBm OIP3 and a 5.5dB noise figure at 1900MHz. This device uses a single 5V supply and 138mA of ICC. This device is 包裹d in a 4mm x 4mm, 24-QFN with 50? RF input and RF 输出阻抗s for ease of integration into the signal path.
- Multi-mode, multi-carrier transmitters
- PCS1900 base stations
- DCS1800 base stations
- WiMAX and LTE base stations
- UMTS/WCDMA 3G base stations
- PHS/PAS base stations
- Public safety 基础设施
产品文档
类型
姓名
日期
动作
2025-08-25
F1421 数据表
2025-08-25
RF Amplifiers with Zero-Distortion Technology
2025-08-25
PCN#: TB1901-01 Add Alternate Test 地点 on 选择 Devices
2025-08-25
PCN# : TB1912-02 Convert 船运 Media from Tube or Tray to Cut Reel
2025-08-25
PCN# : TB1912-02(R1) Convert 船运 Media from Tube or Tray to Cut Reel
2025-08-25
PCN# : 230017 Add alternate assembly 地点 on 选择 VFQFPN 包裹
2025-08-25
PCN# : 240016 Add JCET| China as an alternate assembly 地点 on 选择 VFQFPN 包裹s
Boards and Kits
.png)

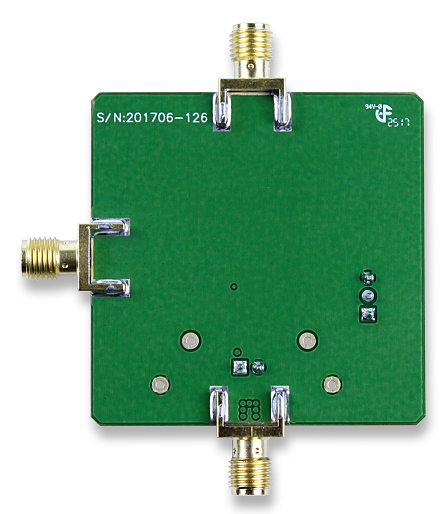

Evaluation Board for F1421 RF Amplifier 1700MHz to 2.2GHz
The F1421EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1421 RF amplifier.
