产品详情
- RF 范围: 400 MHz to 3800 MHz
- LO 范围: 400 MHz to 3600 MHz
- IF 范围: 50 MHz to 600 MHz
- 4 获得 settings; 11 dB, 8 dB, 5 dB, 2 dB

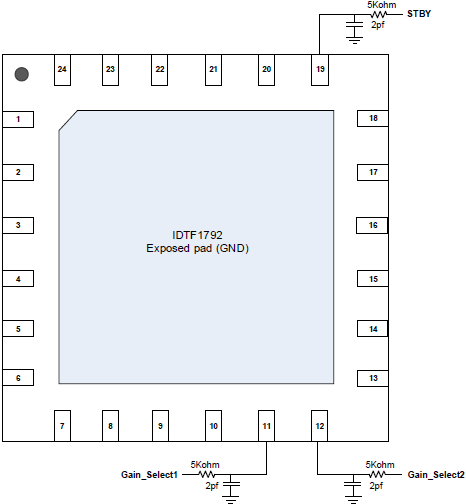

- 2-bit 获得 步 control
- Ideal for Multi-Carrier systems
- +35 dBm OIP3
- Low noise figure at any 获得 setting via IDT’s FlatNoise™ technology
- Z = 200 ? IF balanced, 50 ? RF, 50 ? LO single ended
- All internally matched. Single BOM for all RF, LO and IF frequencies

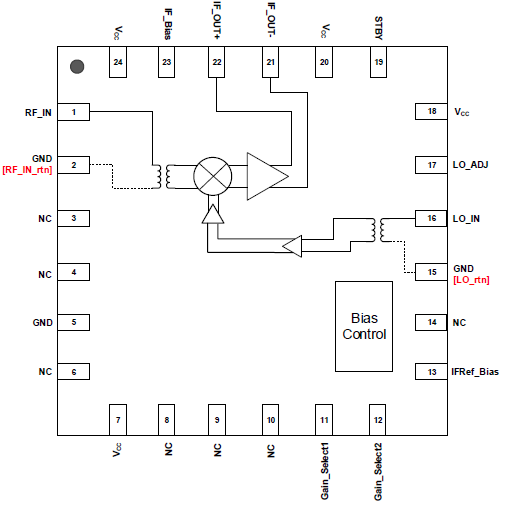

- 4 mm x 4 mm, 24-pin TQFN 包裹
- Independent Path Standby mode
- 75 nsec settling for 获得 adjustment
- VCC = 3.3 V, 462 mW
The F1792 offers maximum performance and flexibility at minimum power consumption. The unique and patented settable-获得 feature allows it to be used in a very wide variety of radiocard 应用s, even allowing for dynamic adjustment of 获得 to maximize performance on the fly. The extremely wide RF and IF bandwidths are achieved with a fixed BOM with all internal matching. The device can 功能 with as little as -6 dBm LO power and with independent channel shutdown modes for ease of integration into 高 订单 TDD MIMO systems.
产品文档
类型
姓名
日期
动作
2025-08-25
PCN# : A1611-02 Add JCET China as Alternate Assembly and Change of Material Set at Alternate Assembly 地点
2025-08-25
PCN# : TB1912-02 Convert 船运 Media from Tube or Tray to Cut Reel
2025-08-25
PCN# : TB1912-02(R1) Convert 船运 Media from Tube or Tray to Cut Reel
Design & Development (Boards and Kit)

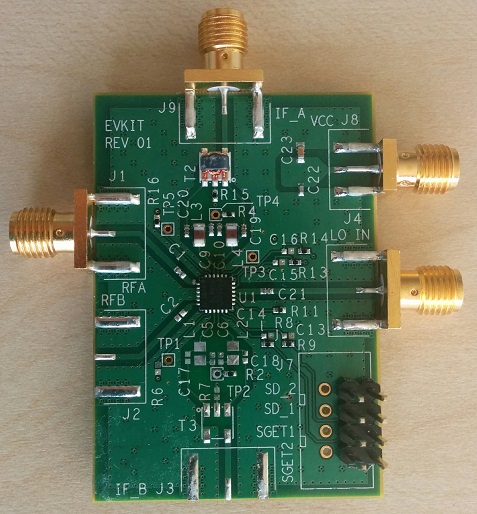

Evaluation Board for F1792 VersaMixer™ Wideband / Low-Power Single Channel
The F1792EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1792. There is onboard 4:1 Balun to translate 200 ohm IF 输出阻抗 to 50 ohm for easy evaluation. Also, jumpers are used for 获得 control.
