- Single-pole double-throw with absorptive terminations on the isolated port
- Leading performance RF over 5MHz to 3000 MHz
- Isolation: 65dB at 1200MHz
- Insertion loss: 0.45dB at 1200MHz
- 高 continuous RF CW power handling at 85 °C
- 选择ed RF path: 27dBm
- Terminated RF path: 24dBm
- 高 linearity:
- IIP2/IIP3: 95dBm/63dBm
- CSO and CTB: -90dBc
- Single 2.70V to 3.60V 电源电压

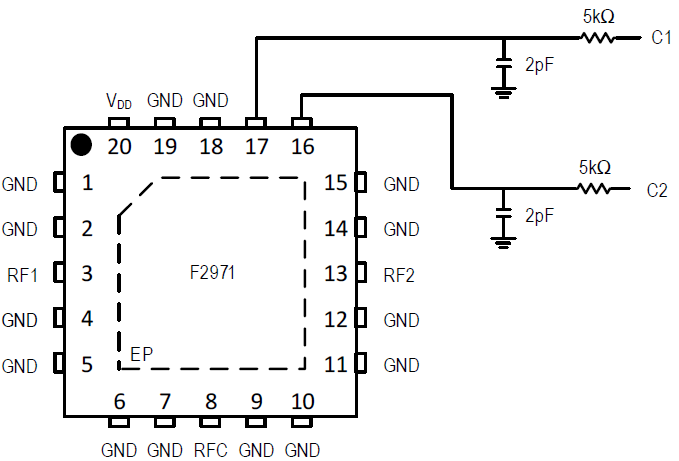

- 3.3V and 1.8V compatible control logic
- Operating temperature -40 °C to +105 °C

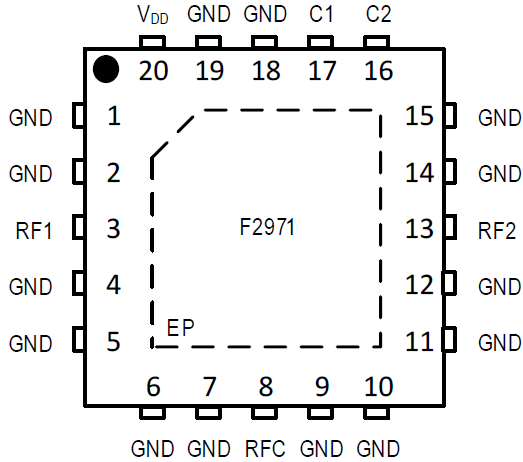

- 4mm × 4mm 20-LQFN 包裹
The F2971 is a rugged, low insertion loss, 75? SP2T (SPDT) absorptive RF switch designed for a wide 范围 of CATV and broadband RF 应用s. This device covers a broad 频率范围 from 5MHz to 3000MHz. In addition to having excellent linearity and isolation performance, it also provides a 75? termination to the isolated RF port. The F2971 特征 an internally switched termination resistor on the RF common port.
Design & Development (Boards and Kit)
.png)

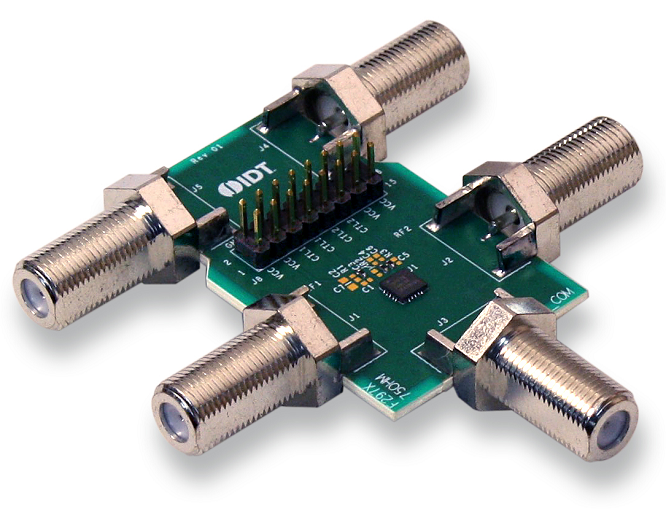

Evaluation Board for 75 Ohm SP2T Absorptive RF Switch
The F2971EVBI is a fully populated evaluation board enabling easy RF evaluation of the F2971 product.
“Thru” calibration connectors are conveniently located on the evaluation board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by 申请ing the correct control logic voltage to the control pins as outlined in the 数据表. DC power, ground and the control voltages are applied to the pin header.
