产品详情
- 获得 at 2.6GHz
- 34dB typical in 高 获得 Mode
- 28dB typical in Low 获得 Mode
- 1.6dB NF at 2.6GHz
- +23dBm OIP3 at 2.6GHz
- OP1dB at 2.6GHz
- +15dBm in 高 获得 Mode
- +14dBm in Low 获得 Mode
- 50? single-ended input/output amplifier impedances
- IDD = 130mA
- Independent Standby Mode for power savings
- 电源电压: +3.15V to +3.45V
- 6mm × 6 mm, 32-pin LGA 包裹
- -40 °C to +105 °C exposed pad operating temperature 范围

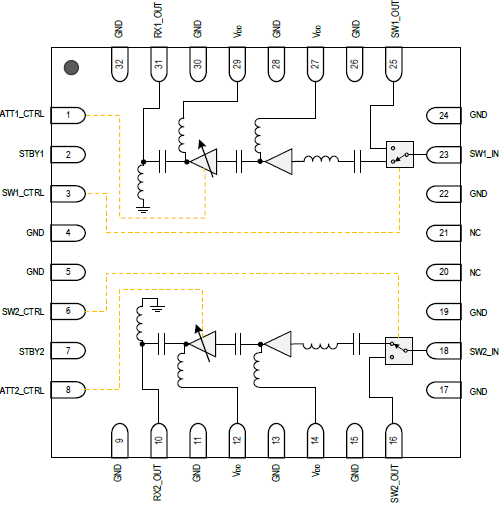

The F0452C is an integrated dual-path RF front-end consisting of an RF switch and two 获得 stages with 6dB 获得 control used in the analog front-end receiver of an Active Antenna System (AAS).
The F0452C provides 34dB 获得 with +23dBm OIP3, +15dBm output P1dB, and 1.6dB noise figure (NF) at 2.6GHz. 获得 is reduced 6dB in a single 步 with a maximum 获得 settling time of 31ns. The device uses a single 3.3V supply and 130mA of IDD.
The F0452C is offered in a 6mm × 6mm × 0.8 mm, 32-pin LGA 包裹 with 50? input and output amplifier impedances for ease of integration into the signal path.
产品文档
类型
姓名
日期
动作
2025-08-25
F0452C 数据表
2025-08-25
PCN# : 210022 数据表 Parameter Change for 选择 RFD Devices
2025-08-25
PCN# : 220029 Add Alternate Assembly 地点s on VFQFPN and LGA 包裹s
2025-08-25
PLC# : 230006 - End-of-Life (EOL) process on 选择 部件号s
2025-08-25
PLC# : 230006-A1 End-of- Life (EOL) Process begun on 选择 部件号s
