产品详情
- Dual path for MIMO systems
- 28dB max power 获得
- 47dB 获得 control 范围, 1dB 步s
- Ultra linear +46dBm OIP3
- Low NF: 9.9dB at GMAX
- Ultra 高 +19.5dBm OP1dB
- Independent path standby mode
- Constant LO impedance in STBY mode
- 60MHz to 450MHz IF 频率范围
- Excellent 2 × 2, 3 × 3, IM2, 2nd Harmonic Rejection
- ICC = 455mA STD Mode, 375mA LC Mode

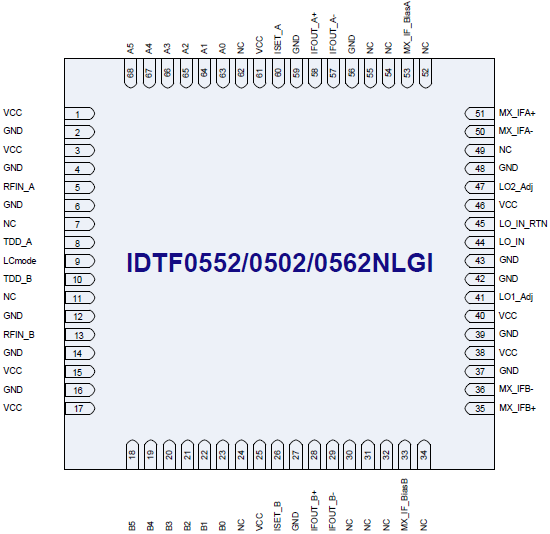

- 10 × 10 mm 68-VFQFPN 包裹
The F0552 provides 28dB 获得 and offers 47dB 获得 adjustment in 1dB 步s designed to operate with a single 5V supply. Nominally, the device offers +46dBm 输出IP3 using 455mA of ICC. Alternately, the device can be configured in low current (LC) mode to reduce power consumption to < 2 Watts.
This device is 包裹d in a 10 x 10 mm 68-VFQFPN with 50? single-ended RF input and 200? differential IF 输出阻抗s for ease of integration.
Design & Development (Boards and Kit)
.png)
Evaluation Board for the F0552 Integrated TRx IC
The F0552EVB is a fully populated test board enabling easy evaluation of the F0552 Integrated TRx IC.
