F0562

Dual Path RF to IF Mixer - 2300MHz to 2700MHz

数据表联系销售人员

产品详情

特征
描述

Dual path for MIMO systems
29dB max power 获得
Ultra linear +44dBm OIP3
Low NF: 9.9dB at GMAX
Ultra 高 +19.8dBm OP1dB
Independent path standby mode
Constant LO impedance in STBY mode
47dB 获得 control 范围, 1dB 步s
60MHz to 450MHz IF 频率范围
Excellent 2nd Harmonic Rejection
ICC = 390mA LC Mode

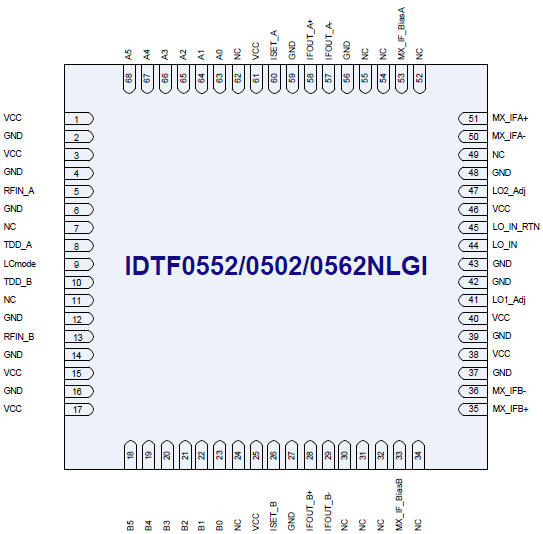

10 × 10 mm 68-VFQFPN 包裹

Dual path for MIMO systems
29dB max power 获得
Ultra linear +44dBm OIP3
Low NF: 9.9dB at GMAX
Ultra 高 +19.8dBm OP1dB
Independent path standby mode
Constant LO impedance in STBY mode
47dB 获得 control 范围, 1dB 步s
60MHz to 450MHz IF 频率范围
Excellent 2nd Harmonic Rejection
ICC = 390mA LC Mode
10 × 10 mm 68-VFQFPN 包裹

The F0562 provides 29dB 获得 and offers 47dB 获得 adjustment in 1dB 步s designed to operate with a single 5V supply. Nominally, the device offers +44dBm 输出IP3 using 480mA of ICC. Alternately, the device can be configured in low current (LC) mode to reduce power consumption to < 2 Watts.

This device is 包裹d in a 10 × 10 mm 68-VFQFPN with 50? single-ended RF input and 200? differential IF 输出阻抗s for ease of integration.
