产品详情
- Broadband 1400MHz to 2300MHz
- 32dB max 获得
- 4dB NF at max 获得 (2000MHz)
- KLIN™ amplifier with 6dB 获得 范围
- DSA: 23.5dB 范围
- 29.5dB total 获得 control 范围, 0.5dB 步
- < 2dB overshoot between major 获得 transitions such as 15.5dB to 16dB atten
- +40dBm OIP3
- Maintains +23.5dBm output P1dB over first 6dB 获得 adjustment 范围

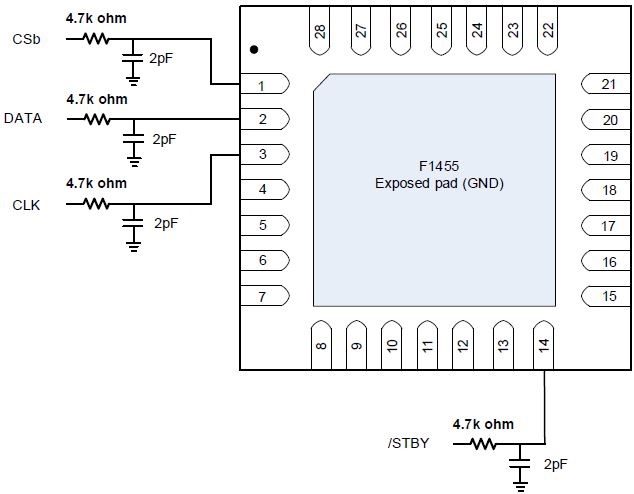

- SPI interface for DSA control
- Single 5V 电源电压
- ICC = 216mA
- Up to +105 °C TCASE operating temperature
- 50? input and 输出阻抗
- Standby for power savings
- Pin compatible 700MHz and 2700MHz versions

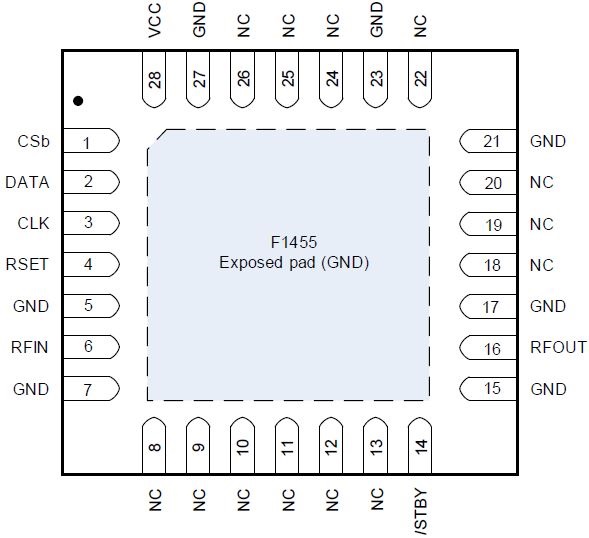

- 6mm x 6mm, 28-QFN 包裹
The F1455 is a 高-获得/高-linearity 1400MHz to 2300MHz TX variable 获得 amplifier (VGA) used in transmitter 应用s. The F1455 TX VGA provides 32dB maximum 获得 with +39dBm OIP3 and 4dB noise figure. Up to 29.5dB 获得 control is achieved using the combination of a digital 步 attenuator (DSA) plus KLIN™ RF variable 获得 amplifier 获得 adjustment. This device uses a single 5V supply and 216mA of ICC. It is 包裹d in a 6mm x 6mm, 28-QFN with 50? single-ended RF input and RF 输出阻抗s for ease of integration into the signal path.
产品文档
类型
姓名
日期
动作
2025-08-25
RF 产品 Evaluation System (EVS) Digital Control Software
2025-08-25
RF Family of 产品
2025-08-25
F1455 S-Parameters
2025-08-25
F1455 数据表 REV1
2025-08-25
PCN#A1709-04 Alternate Assembly 地点 at ASECL on 选择 包裹
2025-08-25
IBIS model for F1455
2025-08-25
PCN# : 210030 Add Carsem| Malaysia as an Alternative Test 地点
Boards and Kits
Evaluation Board for F1455 TX VGA
The F1455EVBK is a fully populated evaluation board which allows the customer to easily evaluate the F1455 TX RF Digital Variable 获得 Amplifier. Attenuation is set using SPI.
The F1455EVS is a complete hardware and software solution that allows customers to digitally control the F1455EVBK with the USB output on a computer. The kit includes the F1455EVBK board, as well as a USB Digital Control Board and interface cables. The software, guides , and instructional videos are available for download / 查看ing on this page.
部件号 (4)
F1455NKGK
F1455NKGK8
F1455EVBK
F1455EVSK
