产品详情
- 400MHz to 3000MHz (amplifier 范围)
- 50MHz to 6000MHz (attenuator 范围)
- 12dB typical cascaded max 获得
- 36dB continuous 获得 范围
- Excellent linearity +41.5dBm OIP3
- Noise figure 4.3dB
- ICC = 106mA, 1.2mA amplifier standby current
- Bidirectional attenuator RF ports
- Positive amplifier 获得 slope vs. frequency to counteract system PCB loss
- VMODE pin allows either positive or negative attenuation control response
- Linear-in-dB attenuation characteristic

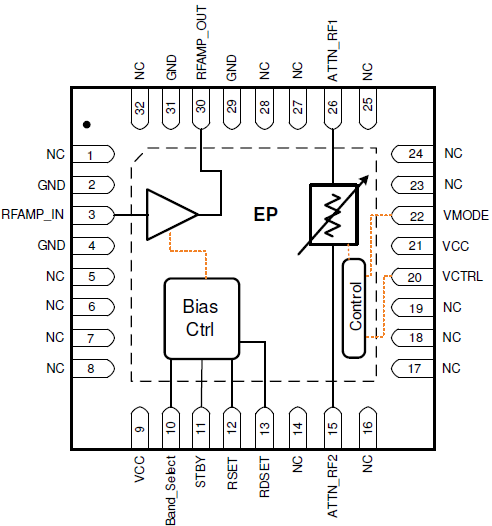

- 4 RF port pinout 支持ing multiple lineup configurations
- 50? input and 输出阻抗s
- Broadband, internally matched
- 5mm x 5mm, 32-TQFN 包裹
The F2480 is a 400MHz to 3000MHz RF Analog Variable 获得 Amplifier (AVGA) that can be used in receivers, transmitters, and 其他 应用s. Either the amplifier or Voltage Variable Attenuator (VVA) can be configured as the first stage in the cascade. The F2480 RF AVGA provides a 12dB typical maximum cascade 获得 (no attenuation) with a 4.3dB noise figure (amplifier as first stage) and a 36dB 获得 adjustment designed to operate with a single +5V supply. Nominally, the Zero-Distortion™ amplifier offers +41.5dBm 输出IP3 using 106mA of ICC. This device is 包裹d in a 5mm x 5mm, 32-TQFN with 50? single-ended RF input and RF 输出阻抗s for ease of integration into the signal-path lineup.
产品文档
类型
姓名
日期
动作
Design & Development (Boards and Kit)
Evaluation Kit for F2480 Broadband RF Analog VGA
The F2480EVBI is a fully populated evaluation board that allows the customer to easily evaluate the F2480 Analog VGA. Complete instructions for the EBV, pin 描述s and the schematic can be found in the product 数据表.
