RF Switches
Ever-increasing demand by consumers for more data at higher throughput continues to drive systems standards to evolve to address these needs across multiple markets segments and applications. These evolving standards require RF components with much higher RF performance that will improve a system’s Signal to Noise Ratio, SNR, to increase data rates and throughput.
CONTACT SALESProduct Selector
Part Number (17)

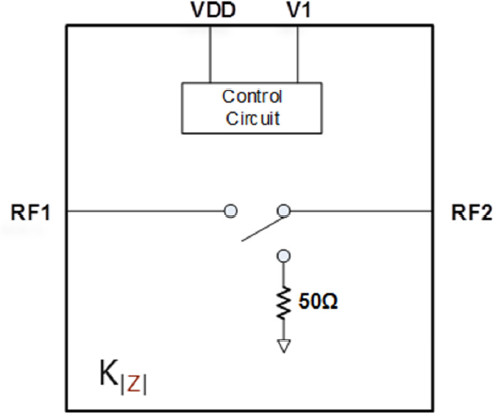

F2910
High Linearity Switch
Architecture
SPST, 50Ω, Absorptive
RF Frequency Min (GHz)
0.03
RF Frequency Max (GHz)
8
Supply Voltage (V)
3 – 5
Insertion Loss (dB)
0.55
IP0.1dB (dB)
34
IP1dB (dB)
34
IIP3 (dBm)
67
Current (mA)
0.19
Package (mm)
2 x 2, 8-Pin DFN

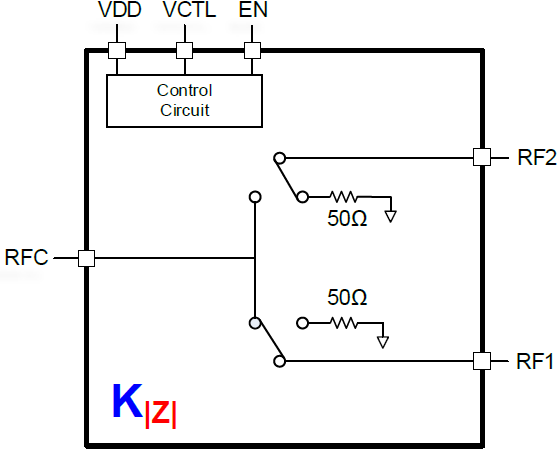

F2934
High Reliability Switch
Architecture
SPDT, 50Ω, Absorptive
RF Frequency Min (GHz)
0.05
RF Frequency Max (GHz)
8
Supply Voltage (V)
3-5
Insertion Loss (dB)
0.79
IP0.1dB (dB)
32.3
IP1dB (dB)
36.5
IIP3 (dBm)
64
Current (mA)
0.26
Package (mm)
3 x 3, 16-Pin QFN
F2977
High Linearity Switch
Architecture
SPDT, 50Ω, Reflective
RF Frequency Min (GHz)
0.03
RF Frequency Max (GHz)
6
Supply Voltage (V)
3 – 5
Insertion Loss (dB)
0.38
IP0.1dB (dB)
40
IP1dB (dB)
-
IIP3 (dBm)
77
Current (mA)
0.08
Package (mm)
2 x 2, 12-Pin QFN

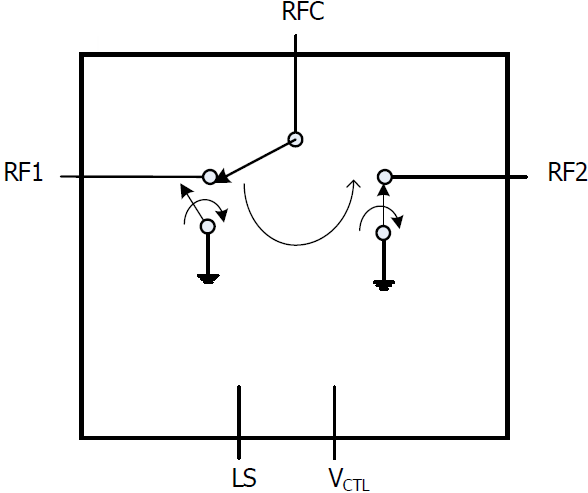

F2976
High Linearity Switch
Architecture
SPDT, 50Ω, Reflective
RF Frequency Min (GHz)
0.005
RF Frequency Max (GHz)
10
Supply Voltage (V)
3 – 5
Insertion Loss (dB)
0.4
IP0.1dB (dB)
40
IP1dB (dB)
-
IIP3 (dBm)
77
Current (mA)
0.08
Package (mm)
2 x 2, 12-Pin QFN
F2972
High Linearity Switch
Architecture
SPDT, 50Ω, Reflective
RF Frequency Min (GHz)
0.005
RF Frequency Max (GHz)
10
Supply Voltage (V)
3 – 5
Insertion Loss (dB)
0.4
IP0.1dB (dB)
40
IP1dB (dB)
-
IIP3 (dBm)
77
Current (mA)
0.08
Package (mm)
2 x 2, 12-Pin QFN

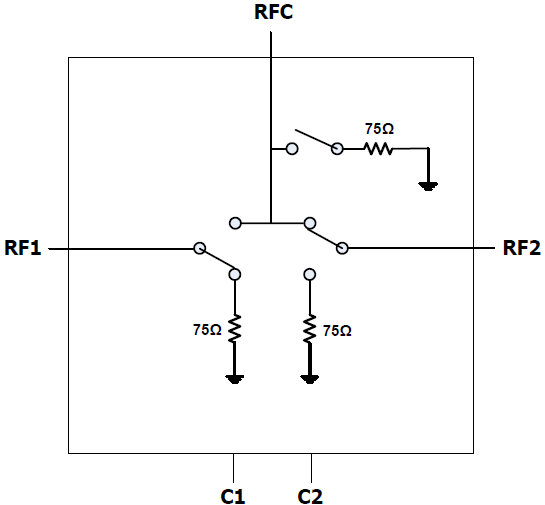

F2971
High Reliability Switch
Architecture
SPDT, 75Ω, Absorptive
RF Frequency Min (GHz)
0.005
RF Frequency Max (GHz)
3
Supply Voltage (V)
3.3
Insertion Loss (dB)
0.31
IP0.1dB (dB)
-
IP1dB (dB)
32
IIP3 (dBm)
67
Current (mA)
0.02
Package (mm)
4 x 4, 20-Pin QFN

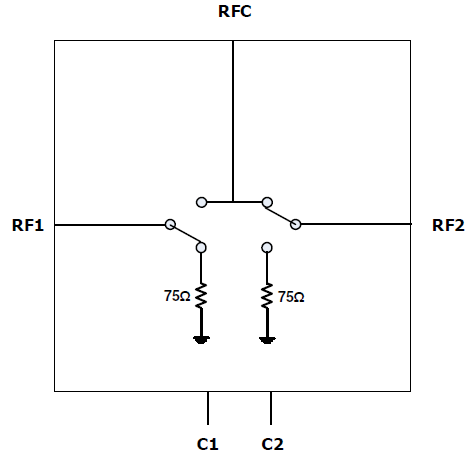

F2970
High Reliability Switch
Architecture
SPDT, 75Ω, Absorptive
RF Frequency Min (GHz)
0.005
RF Frequency Max (GHz)
3
Supply Voltage (V)
3.3
Insertion Loss (dB)
0.32
IP0.1dB (dB)
-
IP1dB (dB)
32
IIP3 (dBm)
63
Current (mA)
0.02
Package (mm)
4 x 4, 20-Pin QFN

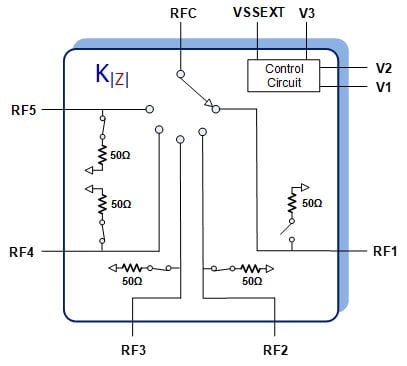

F2955
High Reliability Switch
Architecture
SP5T, 50Ω, Absorptive
RF Frequency Min (GHz)
0.05
RF Frequency Max (GHz)
8
Supply Voltage (V)
3 – 5
Insertion Loss (dB)
1.1
IP0.1dB (dB)
35
IP1dB (dB)
36.5
IIP3 (dBm)
60.5
Current (mA)
0.29
Package (mm)
4 x 4, 24-Pin DFN

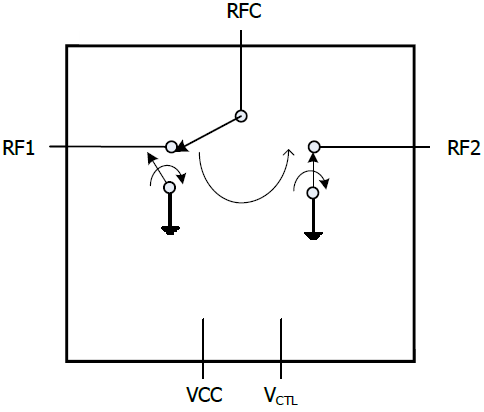

F2950
High Linearity Switch
Architecture
SPDT, 50Ω, Reflective
RF Frequency Min (GHz)
0.1
RF Frequency Max (GHz)
8
Supply Voltage (V)
3 – 5.5
Insertion Loss (dB)
0.58
IP0.1dB (dB)
-
IP1dB (dB)
40
IIP3 (dBm)
69
Current (mA)
0.17
Package (mm)
1.5 x 1.5, 6-Pin DFN

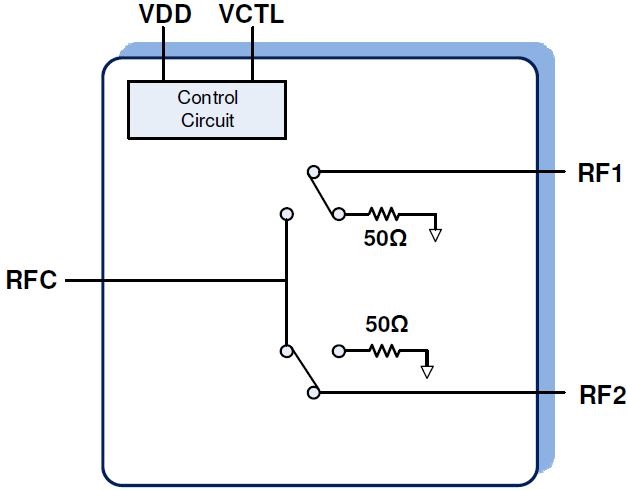

F2933
High Reliability Switch
Architecture
-
RF Frequency Min (GHz)
0.05
RF Frequency Max (GHz)
8
Supply Voltage (V)
-
Insertion Loss (dB)
-
IP0.1dB (dB)
32.3
IP1dB (dB)
36.5
IIP3 (dBm)
-
Current (mA)
0.26
Package (mm)
4 x 4, 16-Pin QFN
F2932
High Reliability Switch
Architecture
SPDT, 50Ω, Absorptive
RF Frequency Min (GHz)
0.05
RF Frequency Max (GHz)
8
Supply Voltage (V)
3-5
Insertion Loss (dB)
0.79
IP0.1dB (dB)
32.3
IP1dB (dB)
36.5
IIP3 (dBm)
64
Current (mA)
0.26
Package (mm)
4 x 4, 16-Pin QFN

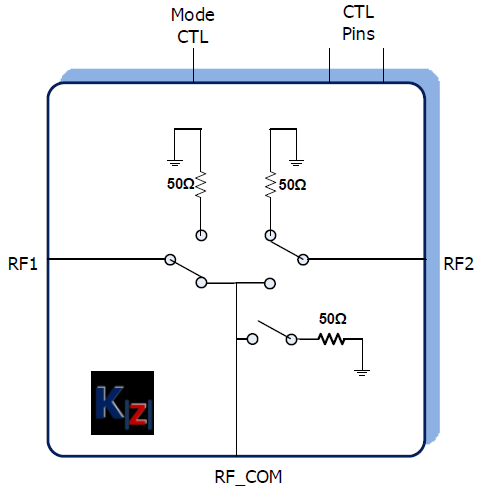

F2923
High Reliability Switch
Architecture
SPDT, 50Ω, Absorptive
RF Frequency Min (GHz)
0.0003
RF Frequency Max (GHz)
8
Supply Voltage (V)
3.3
Insertion Loss (dB)
0.48
IP0.1dB (dB)
-
IP1dB (dB)
32
IIP3 (dBm)
66
Current (mA)
0.127
Package (mm)
4 x 4, 20-PinQFN

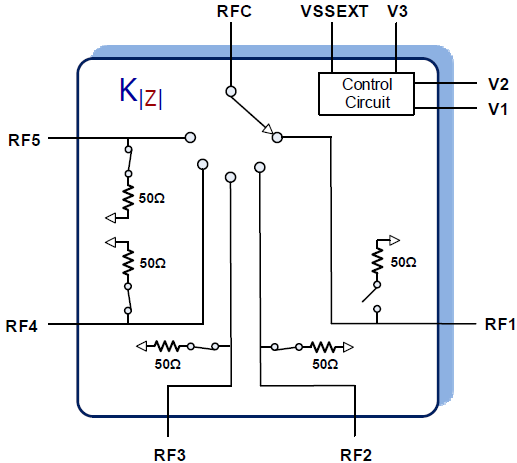

F2915
High Reliability Switch
Architecture
SP5T, 50Ω, Absorptive
RF Frequency Min (GHz)
0.05
RF Frequency Max (GHz)
8
Supply Voltage (V)
3 – 5
Insertion Loss (dB)
1.1
IP0.1dB (dB)
35
IP1dB (dB)
36.5
IIP3 (dBm)
60.5
Current (mA)
0.29
Package (mm)
4 x 4, 24-Pin QFN
F2914
High Reliability Switch
Architecture
SP4T, 50Ω, Absorptive
RF Frequency Min (GHz)
0.05
RF Frequency Max (GHz)
8
Supply Voltage (V)
3 – 5
Insertion Loss (dB)
1.1
IP0.1dB (dB)
35
IP1dB (dB)
-
IIP3 (dBm)
60
Current (mA)
0.29
Package (mm)
4 x 4, 24-Pin QFN

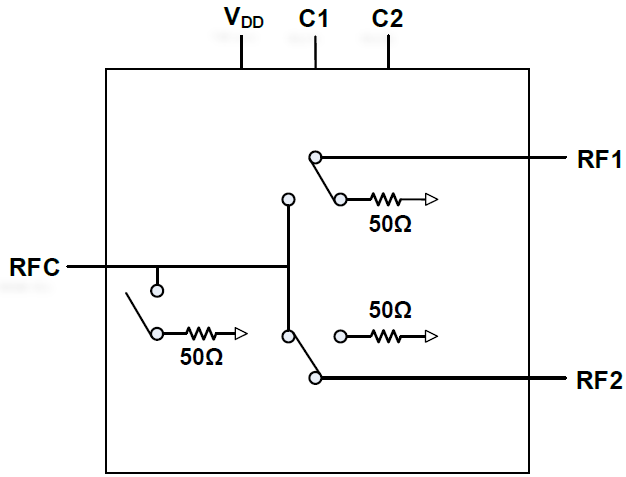

F2913
High Isolation Switch
Architecture
SPDT, 50Ω, Absorptive
RF Frequency Min (GHz)
0.05
RF Frequency Max (GHz)
6
Supply Voltage (V)
3 – 5
Insertion Loss (dB)
0.79
IP0.1dB (dB)
-
IP1dB (dB)
36
IIP3 (dBm)
65
Current (mA)
0.09
Package (mm)
4 x 4, 20-Pin QFN

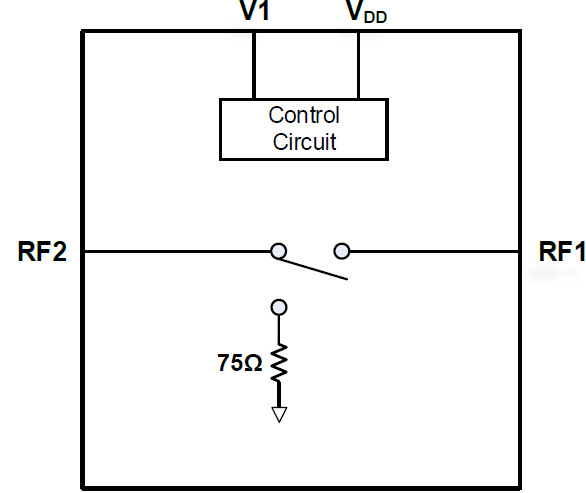

F2911
High Reliability Switch
Architecture
SPST, 75Ω, Absorptive
RF Frequency Min (GHz)
0.001
RF Frequency Max (GHz)
3.5
Supply Voltage (V)
3 – 5
Insertion Loss (dB)
0.33
IP0.1dB (dB)
33
IP1dB (dB)
34
IIP3 (dBm)
64
Current (mA)
0.19
Package (mm)
2 x 2, 8-Pin DFN

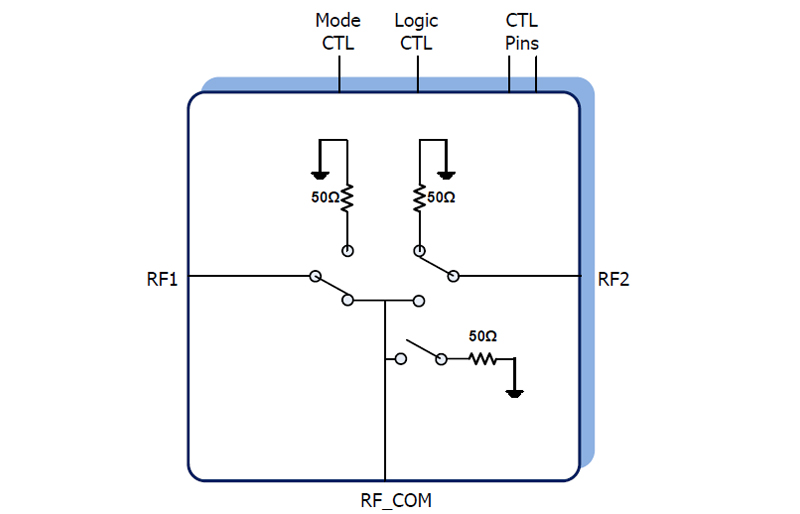

F2912
High Reliability Switch
Architecture
SPDT, 50Ω, Absorptive
RF Frequency Min (GHz)
0.000009
RF Frequency Max (GHz)
9
Supply Voltage (V)
3.3
Insertion Loss (dB)
0.4
IP0.1dB (dB)
-
IP1dB (dB)
30
IIP3 (dBm)
66
Current (mA)
0.02
Package (mm)
4 x 4, 20-Pin QFN
