Product Details
- Single-pole double-throw (SPDT) with absorptive terminations on the isolated port
- Leading performance RF over 5MHz to 3000MHz
- Isolation: 68dB at 1200MHz
- Insertion Loss: 0.32dB at 1200MHz
- High continuous RF CW power handling at 85 °C
- Selected RF path: 27dBm
- Terminated RF path: 24dBm
- High linearity:
- IIP2/IIP3: 95dBm/63dBm
- CSO and CTB: -90dBc
- Single 2.70V to 3.60V supply voltage
- 3.3V and 1.8V compatible control logic
- Operating temperature -40 °C to +105 °C

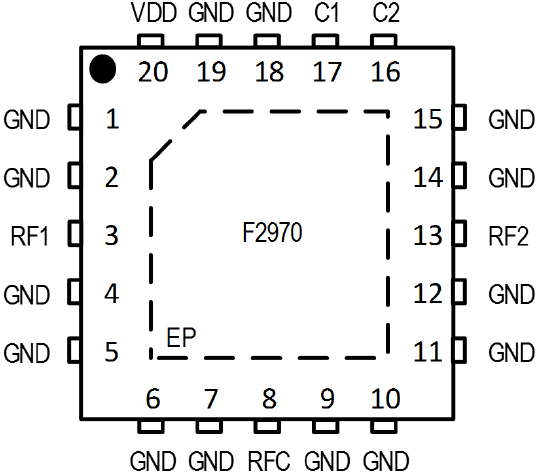

- 4mm × 4mm 20-pin LQFN package
The F2970 is a rugged, low insertion loss, 75? SP2T (SPDT) absorptive RF switch designed for a wide range of CATV and broadband RF applications. This device covers a broad frequency range from 5MHz to 3000MHz. In addition to having excellent linearity and isolation performance, it also provides a 75? termination to the isolated RF port.
Product Documents
Type
Name
Date
Actions
Design & Development (Boards and Kit)
Evaluation Board for High Reliability SPDT Absorptive RF Switch
The F2970EVBI is a fully populated, enabling easy RF evaluation of the product.

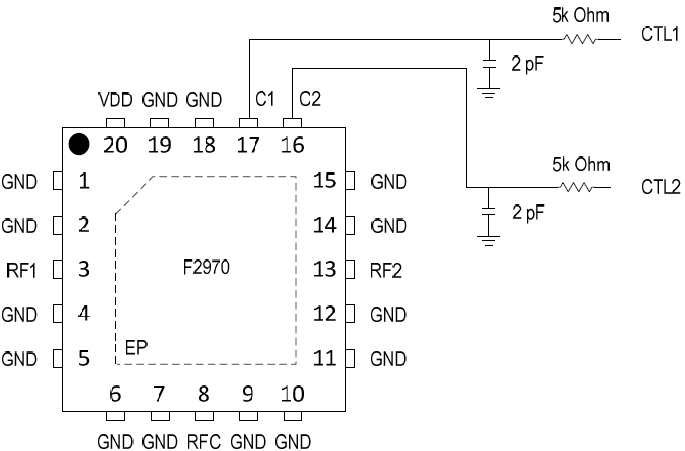

“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by applying the correct control logic voltage to the control pins as outlined in the datasheet. DC power, ground and the control voltages are applied to the pin header.
Part Number (3)
F2970NCGK
F2970NCGK8
F2970EVBI
