Product Details
- Dual symmetric broadband, absorptive RF ports
- High-performance RF at 2GHz
- RFC-RFX Isolation of 67dB
- Insertion Loss of 0.79dB
- High continuous RF CW Power Handling
- Selected RF path: 34dBm
- Terminated RF path: 27dBm
- High linearity:
- IIP2 of 111dBm
- IIP3 of 64dBm
- 3.3V and 1.8V compatible control logic
- Operating temperature of -40 °C to +105 °C
- 4mm x 4mm 16-pin QFN package

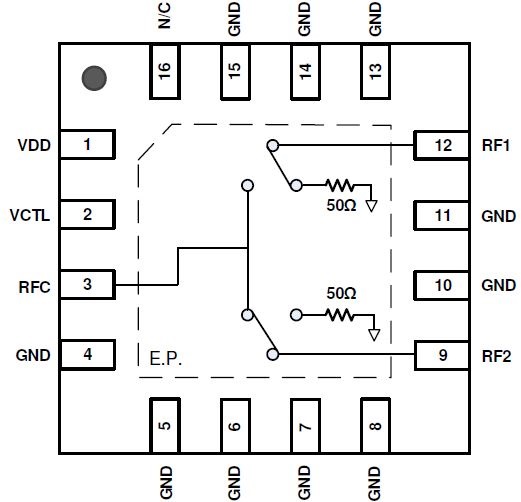

The F2933 is a high-reliability, low-insertion loss, 50? single-pole double-throw (SP2T) absorptive RF switch designed for a wide range of markets and applications. This device covers a broad frequency range from 50MHz to 8000MHz, has an operating temperature range of -40 °C to 105 °C, and a wide supply voltage range of 2.7V to 5.5V. Designed for high-power handling, the F2933 has a P1 dB as high as 36.5dBm, supporting a peak operating power of 34dBm in the through path and a hot switching power of 27dBm into the terminated RF port. In addition to providing low-insertion loss, the F2933 also delivers high isolation and low distortion performance while providing a 50? termination to the unused RF ports.

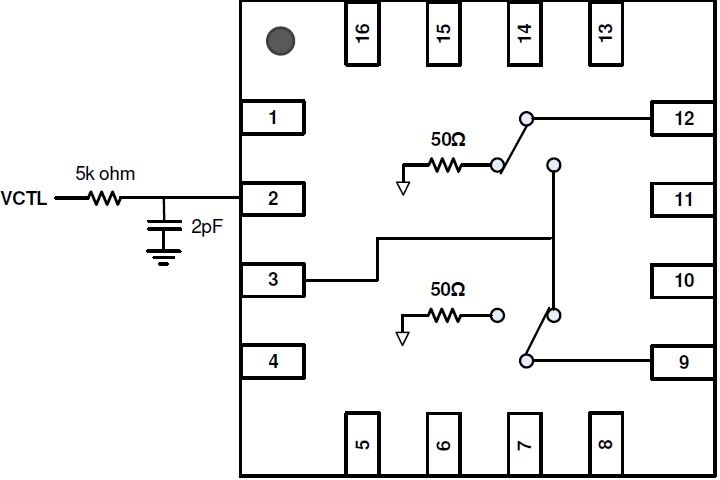

The F2933 uses a single positive supply voltage supporting three logic control pins using either 3.3V or 1.8V control logic.
Design & Development (Boards and Kit)
Evaluation Board for High Reliability SPDT Absorptive RF Switch
The F2970EVBI is a fully populated, enabling easy RF evaluation of the product.
“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by applying the correct control logic voltage to the control pins as outlined in the datasheet. DC power, ground and the control voltages are applied to the pin header.
Part Number (3)
F2933NBGP
F2933NBGP8
F2933EVBI
