- 75?
- Low insertion loss
- 0.23dB at 204MHz
- 0.34dB at 1.8GHz
- 高 Isolation: 40dB at 1.8GHz
- P0.1dB compression of +37dBm at 204MHz
- Second Harmonic: -100dBc at 204MHz
- Third Harmonic: -120dBc at 204MHz
- Composite Second 订单 Distortion > 100dBc
- Composite Triple Beat Distortion > 100dBc
- Low insertion loss
- 50?
- Low insertion loss
- 0.40dB at 2.4GHz
- 0.55dB at 8GHz
- 高 Isolation: 34dB at 2.4GHz
- 高 Linearity:
- IIP2 +125dBm at 2.4GHz
- IIP3 +77dBm at 2.4GHz
- P0.1dB compression of +40dBm at 2.4GHz
- Second Harmonic: -100dBc at 2.4GHz
- Third Harmonic: -110dBc at 2.4GHz
- Low insertion loss

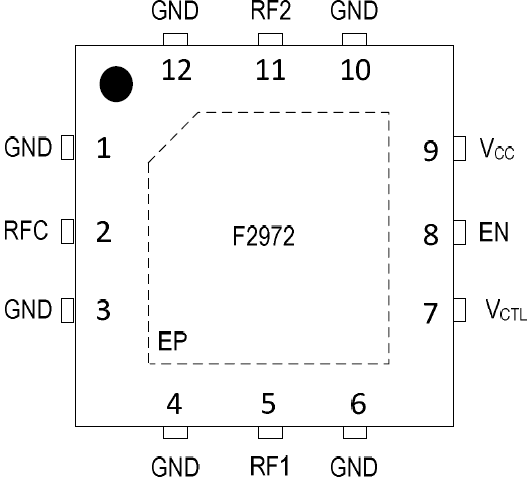

The F2972 is a single-pole double-throw (SP2T) reflective RF switch featuring 高 linearity and wide bandwidth. This device is optimized from 5MHz to 1.8GHz to 支持 downstream cable modem future migration for DOCSIS 3.1 应用s and operates at up to 10GHz to 支持 a multitude of wireless RF 应用s. Superb performance is achieved when used in either 50? or 75? terminating impedance 应用s.
产品文档
类型
姓名
日期
动作
2025-08-25
PCN# : TB1901-03 Add Giga Solution as Alternate Test 地点
Design & Development (Boards and Kit)
Evaluation Board for F2972 高 Linearity Broadband SP2T RF Switch

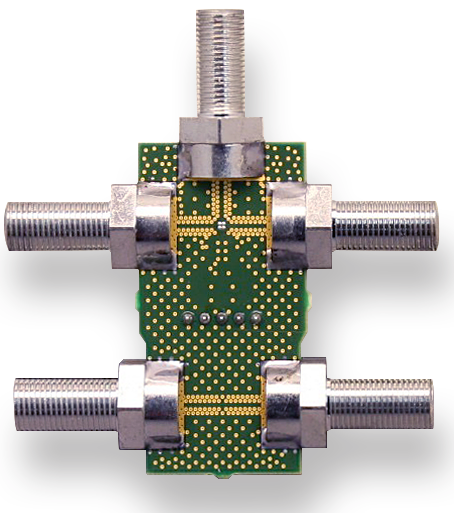

The F2972EVBI is a fully populated evaluation board, enabling easy RF evaluation of the product. It is available in 50? or 75? terminating impedance.
“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by 申请ing the correct control logic voltage to the control pins as outlined in the 数据表. DC power, ground and the control voltages are applied to the pin header.
