产品详情
- 频率范围: 1350MHz to 2800MHz
- 40dB typical 获得 at 2000MHz
- 2.5dB typical NF at 2000MHz
- 41dBm typical OIP3 at 2000MHz
- 27dBm typical OP1dB at 2000MHz
- Configurable 50? or 100? differential input impedance through external input BOM change
- 31.5dB DSA 范围 with 0.5dB 步 size
- 5V power supply
- 350mA typical quiescent current consumption
- 1.8V and 3.3V SPI SDI logic compatible
- 1.8V SPI SDO logic compatible
- SPI control for DSA attenuation
- Disable mode for power savings
- Operating temperature (TEPAD) 范围: -40 °C to +105 °C

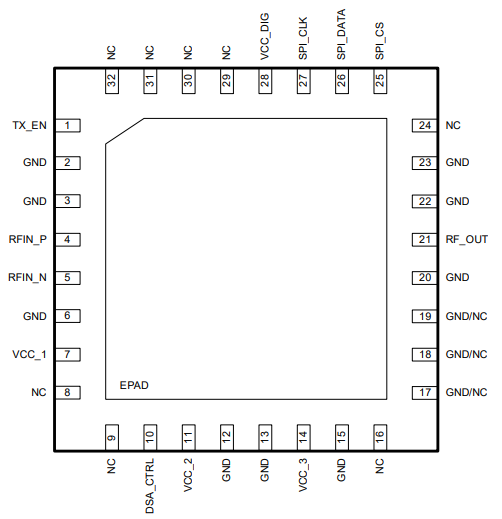

- 5mm x 5mm 32-VFQFPN 包裹
The F1441 is a 高-linearity variable 获得 RF amplifier with an integrated digital 步 attenuator (DSA) designed to operate within the 1350MHz to 2800MHz 频率范围. Using a single 5V power supply, the F1441 typically provides 40dB of 获得, 2.5dB of noise figure, 41dBm of OIP3, and 27dBm OP1dB at its maximum 获得 setting.
The F1441 is 包裹d in a 5mm x 5mm, 32-VFQFPN 包裹, with an external input BOM configurable differential 50? or 100? input and single-ended 50? 输出阻抗s for ease of integration into the signal path.
- FDD or TDD 5G sub-6GHz wireless 基础设施
- Repeaters and DAS
- General-purpose RF
Design & Development (Boards and Kit)
F1441 高-linearity Variable 获得 Amplifier Evaluation Kit
The F1441EVK is a fully populated evaluation board that allows the customer to evaluate the F1441 Variable 获得 Amplifier with an integrated digital 步 attenuator. The F1441 is controlled with serial communication input using a USB digital interface board that connects to the PC.
The F1441EVK consists of the following:
- F1441 Evaluation Board
- USB Digital Interface Board
- USB Cable (USB-A to USB-B micro)

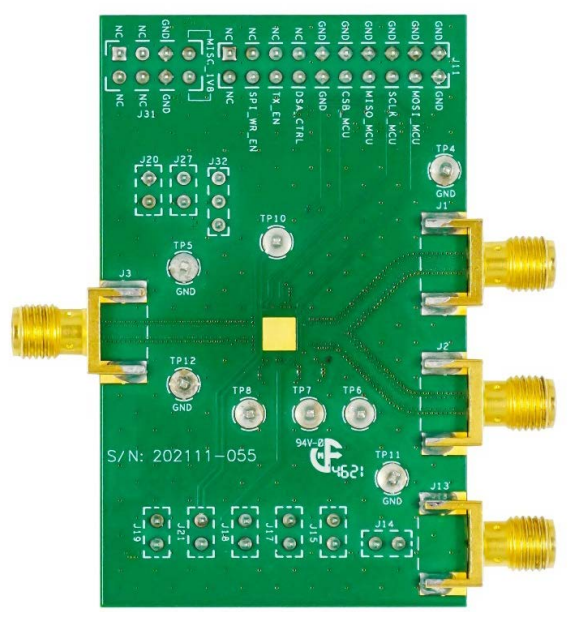

The F1441 Evaluation Board consists of the following:
- SMA connectors for RF IOs and power supply connection
- Header pins for power supply and digital interface connection
- Jumper configurable power supply connection
- Clip-on test point access for voltage sense
